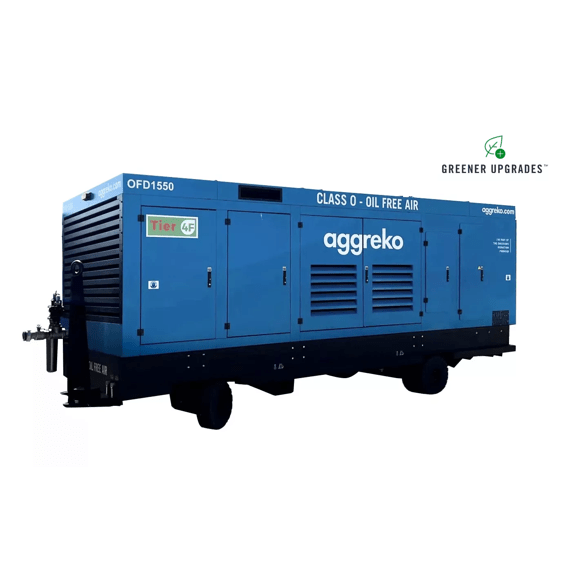

1600 cfm Tier4 Final Diesel Compressor (ZADY)
The new standard for diesel-driven oil-free air.
Our 100% oil-free air compressors offer exceptional energy efficiency and reliability. Designed to meet the unique needs of diverse sectors and critical applications, our Tier 4 Final compressors maintain the safe operation of equipment and the quality of products, while delivering reduced fuel consumption, lower maintenance costs and enhanced uptime.
| Capacity | 1600 cfm |
|---|---|
| Min Operating Temp (°F) | -20 °F (-29 °C) |
| Max Operating Temp (°F) | 125 °F (52 °C) |
| Approach Temperature (Discharge) | 20 °F (-6.7 °C) |
| Max Pressure (psig) | 150 psi (10.342 bar) |
| Min Pressure (psig) | 70 psi (4.826 bar) |
| Nominal Shaft Power | 500 hp (399 kw) |
| Length (ft) | 20.93 ft (6.38 m) |
|---|---|
| Width (ft) | 7.35 ft (2.24 m) |
| Height (ft) | 8.43 ft (2.57 m) |
| Gross Weight (lbs) | 21,000 lbs (9,525 kg) |
| Gross Fuel (gal) | 250 US gal (946 liters) |
Features
- 100% Oil-Free Compressor
- Meets EPA Tier 4 Final emissions standards
- Xtra-High Pressure Injection (XPI) Fuel System helps increase fuel efficiency while decreasing exhaust emissions
- Variable / Fixed Speed Operation
- Durable containment frame and compact design for ease of maneuverability
- Innovative design for excellent air flow and maximum cooling efficiency
- Extended runtime with 250-gallon onboard fuel system and easy-operation valve for external fuel source connection
- Air shut-off for overspeed protection and Spark Arrestor (DPF) for fire safety
- State-of-the-art 7” color touch screen controller
- 24/7 Aggreko Remote Monitoring
Benefits
- Delivery of ISO 8573-1 Class 0 Air
- High reliability technology for maximized uptime
- Longer run times and lower fuel costs
- Reduced emissions with CARB and EPA-compliant exhaust levels
- Noise reduction with sound attenuating canopy design
- Zero oil, zero risks, zero contamination
- Lower total cost of rental
- Nationwide fleet backed by unrivaled dedicated industry experts
- Can be combined with fuel management services to remove burdens associated with planning fuel deliveries, breakdowns, or production interruption risks
- Data-driven proactive diagnostics, response and issue resolution by expert support team helps to avoid preventable failures, minimize down time, accelerate troubleshooting, and enable equipment right-sizing
