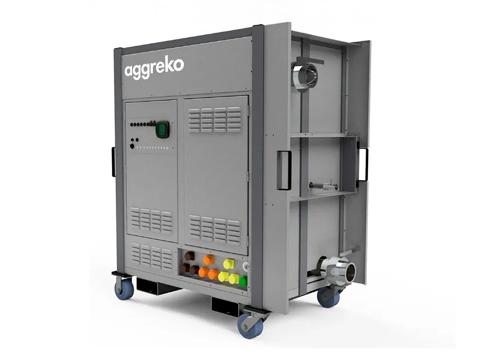

500 kW Liquid-Cooled Load Bank
Aggreko's purpose-built liquid-cooled resistive load bank delivers up to 500 kW of precision load for data center commissioning and testing, seamlessly integrating with existing cooling infrastructure. Built for durability with corrosion-resistant stainless steel components and a sturdy welded frame, it features 5 kW load step resolution, a fully drainable system to prevent cross-contamination, and the ability to network up to 200 units for scalable testing. A built-in flow meter ensures real-time monitoring, making this liquid-cooled load bank a reliable, efficient, and adaptable solution for high-performance load testing.
Benefits
- Liquid cooling ensures stable temperatures for accurate results. Achieved by using 2 x 45 gallon stainless steel tanks.
- Low resolution allows fine load application, meaning more accurate loading.
- The new RxMS control system revolutionizes how customers can load test their whole system from one single point of control. This is the first in the industry.
- Efficient heat dissipation for testing time reduction.
- Provides low-noise operation and minimizes heat emissions.
- Tanks can be flushed, preventing cross-contamination of customer sites. Also features an air valve to assist in bleeding air out of the system.
- Rugged enclosure ensures damage-free shipping and accidental damage when in use with the crash frame. Also features a floor lock to safely fix in position when in use.
- The load bank will protect itself from low flow, over-temperature, and over-pressure conditions. This reduces overheating risks and improves site safety.
Features
- Corrosion resistant stainless steel piping and tanks
- Up to 5 kW load step resolution
- Equipped with a controller that integrates both liquid cooled and air-cooled load banks within the same network, managing up to 200 load banks from a single Windows-based interface.
- Quiet operation
- Ability to fully drain system to avoid cross contamination between jobs.
- Steel enclosure, welded frame and heavy duty castors for durability and long working life.
- Alarm indicators/safety controls
General Description |
|
| Capacity: | 500 kW |
| Cooling System: | Liquid cooled, stainless steel tanks and piping |
| Ambient Temperature: | 120°F (49°C) max |
| Load Type: | Resistive |
| Environment: | Self-contained portable load bank designed for operation and storage indoors |
Physical Data |
|
| Dimensions (L x W x H): | 65in x 39.5in x 74.5in (1650mm x 1005mm x 1892mm) |
| Weight (Full/Empty): | 3,328 lbs (Full) / 2,504 lbs (Empty) |
| Fluid Volume: | 103 gal (389.9 L) |
| Construction Material: | Aluminized Steel |
| Corrosion Resistance: | Stainless steel piping & tanks |
| Mobility: | Heavy-duty casters with floor lock |
