500 Ton Cooling Tower
For HVAC and light industrial applications. 500 Ton Cooling Tower This (2) cell cooling tower has a nominal capacity of 500 tons and is customized specifically for the rental industry. The (2) cell design complimented by a 2 speed fan motor offers simple and relaible means of temperature control. Its design makes it well suited for HVAC and light manufacturing applications by supplying cooling for water cooled chillers and heat exchangers.

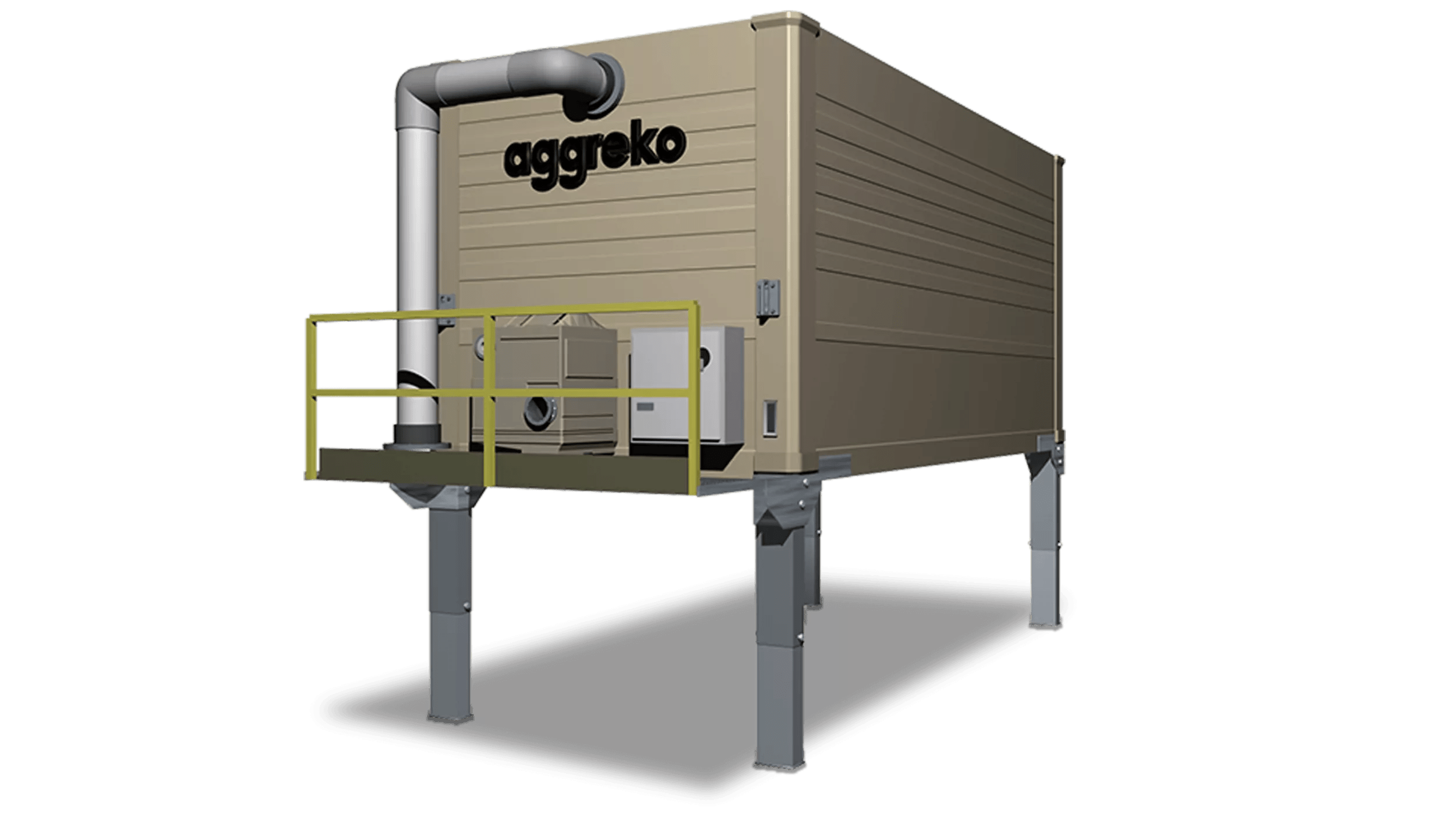

A 500 ton cooling tower with branding, featuring a control panel and mechanical components.
Available voltage: 480V three phase @ 60 Hz Full Load Amps: 64 amps Inlet Connection Size (Hot): 2 x 6" Flange Outlet Connection Size (Cold): 2 x 6" Flange Scalable Solutions: Interconnect multiple units effortlessly, ensuring flexibility for your cooling needs Forced Draft, Counterflow Design: Unique evaporative cooling design with multiple direct-drive fans Industrial & Commercial: Perfect for temporary cooling requirements, tower replacement, repair, emergency cooling, or wastewater cooling
Air Delivery Type
Induced Draft
Fan Motor Size
2 x 25 horsepower
Fan Speed Control
2 Speed
Full Load Amps
64 Amps
Inlet Connection Size hot
2 x 6" Flange
Make-up water connection
2" FNPT
Nominal Capacity
500 tons
Nominal Water Flow
1500 GPM
Outlet Connection Size (cold)
2 x 10" Flange
Volts/Phase/Hz
480/3/60
Height (m)
3.2
Length (m)
7.3
Operational weight
7072 kg
Shipping Weight
3797 kg
Width (m)
2.4
Features
- Low Profile Design
- 2 fan, 2 Speed Fan Control
- Fork Pockets and Top Lift Design
- Duel Inlet and Duel Outlet Connections
Benefits
- Easily transported for low cost and econmical delivery
- Precise temperature control and energy savings
- Can be set into place with a forkilift or remain on a trailer
- Installation is simple and requires minimal time to required to install
