GT-20 200 Ton Cooling Tower

The GT series cooling towers represent the latest in cooling tower technology. These cooling towers were developed by Aggreko specifically for the global rental market. The GT-20 is a 200 ton cooling tower integrated into a shipping container frame. This provides for maximum transportation efficiency globally or domestically. This cooling tower is modular or can be used indepenantly on or off a trailer and has an adjustable substructure from 0 to 12 feet. The EC fan motors provide maximum energy efficiency and precise temperature control.

You won't find this anywhere else. Our GT Cooling Towers use a one-of-a-kind, patented container design that minimizes their installation footprint and maximizes on-site safety. Learn more here.

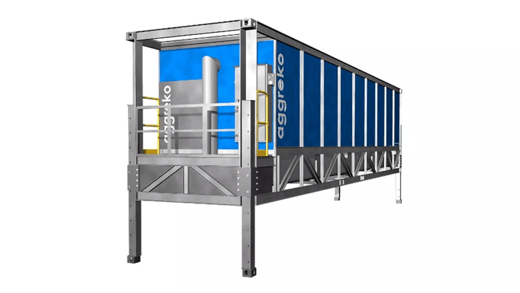

Cooling tower unit with a blue cover and metal framework, featuring a cylindrical component and an access platform.

Air Delivery Type

Induced Draft

Fan Motor Size

8 x .65 HP

Fan Speed Control

Variable Speed

Full Load Amps

5.1 Amps

Inlet Connection Size hot

1 x 10" Flange

Make-up water connection

2" FNPT

Nominal Capacity

200 tons

Nominal Water Flow

600 GPM

Outlet Connection Size (cold)

2 x 10" Flange

Volts/Phase/Hz

480/3/60

Height (ft)

9'-6"

Length (ft)

20'-0"

Operational weight

13000 lbs

Shipping Weight

13000 lbs

Substructure Height

10" to 144"

Width (ft)

8'-0"

Contact Us

Features

  • Modular Design
  • Integrated Shipping Container Design
  • Variable Speed Fans
  • Telescoping Substructure
  • Touchscreen Controls
  • Remote Monitoring



Benefits

  • Can be interconnected to achieve any cooling capacity requiring 25% less space
  • 40% reduction in domestic freight costs / 90% reduction in ocean transport costs
  • Reduces energy costs by 50% and maintains precise temperature control
  • Tower height adjustable to allow maximum drain capability
  • See real time water temperatures, water flow, fan speeds, power consumption, etc...
  • Peace of mind knowing that Aggreko is monitoring equipment status 24/7/365
