GT-40 500 Ton Cooling Tower

GT20 500 Ton Cooling Tower - The GT series cooling towers represent the latest in cooling tower technology. These cooling towers were developed by Aggreko specifically for the global rental market. The GT-20 is a 500 ton cooling tower integrated into a shipping container frame. This provides for maximum transportation efficiency globally or domestically. This cooling tower is modular or can be used independently on or off a trailer and has an adjustable substructure from 0 to 12 feet. The EC fan motors provide maximum energy efficiency and precise temperature control.

You won't find this anywhere else. Our GT Cooling Towers use a one-of-a-kind, patented container design that minimizes their installation footprint and maximizes on-site safety. Learn more here.

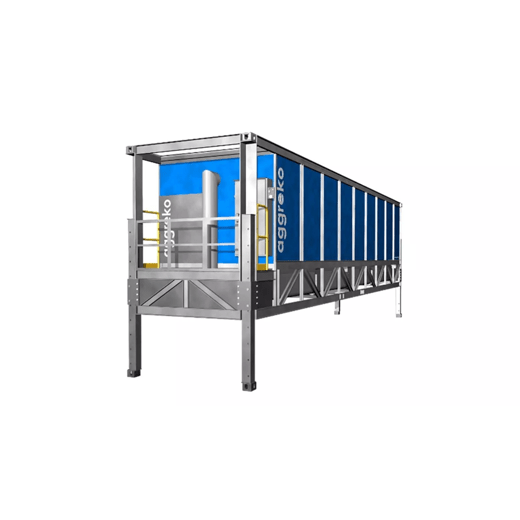

A cooling tower with a visible exhaust pipe featuring a ladder, labeled with the "Aggreko" logo.

Air Delivery Type

Induced Draft

Fan Motor Size

18 x .8 HP

Fan Speed Control

Variable Speed

Full Load Amps

14 Amps

Inlet Connection Size hot

1 x 12" Flange

Make-up water connection

2" FNPT

Nominal Capacity

500 tons

Nominal Water Flow

1500 GPM

Outlet Connection Size (cold)

2 x 12" Flange

Volts/Phase/Hz

480/3/60

Height (ft)

9'-6"

Length (ft)

40'-0"

Shipping Weight

30000 lbs

Substructure Height

10" to 144"

Width (ft)

8'-0"

Contact us

Features

  • Modular Design
  • Integrated Shipping Container Design
  • Variable Speed Fans
  • Telescoping Substructure
  • Touchscreen Controls
  • Remote Monitoring
  • Suitable for Hazardous Locations

Benefits

  • Can be interconnected to achieve any cooling capacity requiring 25% less space
  • 40% reduction in domestic freight costs / 90% reduction in ocean transport costs
  • Reduces energy costs by 50% and maintains precise temperature control
  • Tower height adjustable to allow maximum drain capability and space for accessories
  • See real time water temperatures, water flow, fan speeds, power consumption, etc...
  • Peace of mind knowing that Aggreko is monitoring equipment status 24/7/365
  • With an optional air purge the GT-40 is suitible for use in Class 1, Division 2 locations
