Modular and Heavy Industrial Rental Cooling Towers

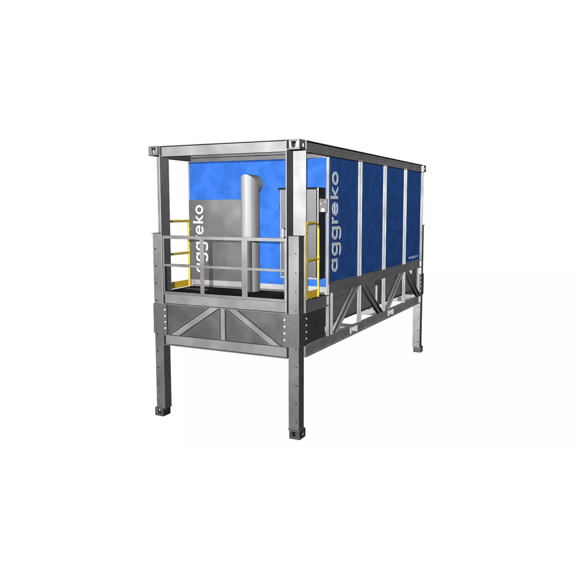

GT-20 500 Ton Cooling Tower
The GT-20 is a one-piece Induced Draft Counter-Flow Modular Cooling Tower.The tower has extendable legs to raise it from the ground and allow airflow through the underside when in use.
When the legs are not extended, for transport purposes, the cooling tower frame is a CSC certified 20’ ISO dimensioned container frame.
| Design Airflow | 23,000 / 184,000 |
|---|---|
| Min/Max Water Flow (l/s) | 30 / 101 |
| Voltage (V) | 380 to 480 / 50 or 60 Hz |
| Length (m) | 6.05 |
|---|---|
| Width (m) | 2.43 |
| Height | 5.18 |
| Shipping Weight | 5,900 kg |
| Operational weight | 9,344 kg |
Features
- Modular Design
- Integrated Shipping Container Design
- Variable Speed Fans
- Telescoping Substructure
- Touchscreen Controls
- Remote Monitoring
Benefits
- Can be interconnected to achieve any cooling capacity requiring 25% less space
- 40% reduction in domestic freight costs / 90% reduction in ocean transport costs
- Reduces energy costs by 50% and maintains precise temperature control
- Tower height adjustable to allow maximum drain capability
- See real time water temperatures, water flow, fan speeds, power consumption and more
- Peace of mind knowing that Aggreko is monitoring equipment status 24/7/365
