Smart energy for every industry

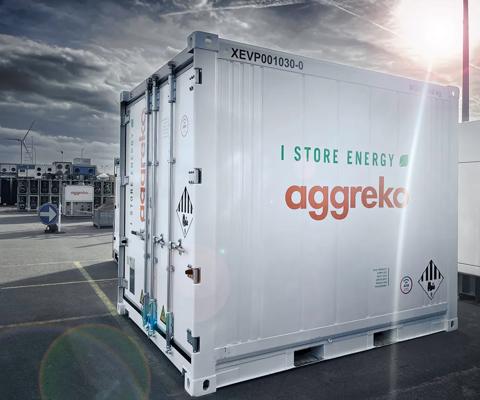

500 kW/250 kWh Battery Energy Storage System (BESS)
A greener solution for a more efficient performance.
Our mid-node 500 kW/250 kWh Battery Energy Storage Systems (BESS) are designed to satisfy a variety of on and off-grid applications, enabling reduced emissions and costs. With their fully integrated, plug-and-play design, they can supply power in the most demanding situation, offering flexibility, reliability and efficiency, without any required capex. These batteries can be operated in island mode, as a part of a hybrid solution with a generator or in parallel with additional BESS, and is ideal for renewable power applications.
Equipment shown may not be representative of equipment currently available
| Delivered Power | 500 kW |
|---|---|
| Energy Capacity | 246 kWh |
| AC INPUT Voltage Range | 400 V |
| Certifications | CE Certified, IEC 62619, IEC 62477 UN 3536, UN 38.3, IEEE 1547 |
| Length (ft) | 9.8 ft (2991 mm) |
|---|---|
| Width (ft) | 8 ft (2438 mm) |
| Height (ft) | 9.5 ft (2896 mm) |
| Weight | 22,046 lbs (10,000 kg) |
Information to be used as a guide, for full specification data please contact us
Benefits
- Enables cost savings and autonomy
- Enables management of variable loads by storing excess energy for later
- Increased utilisation with simple service and long service intervals
- Fast installation and commissioning for our battery range
- Backed by Aggreko's support, including remote monitoring, for enhanced reliability and uninterrupted operation
Features
- Wide operating temperature range
- Power Conversion System that combines inverter and charger
- Low internal resistance and high efficiency
- ECO controller provides intuitive control and monitoring for all batteries and power electronics integrated in the battery pack
- Overload Capability ≤10% of nominal value (max. 1 min)
- Delivers zero CO2 emissions, minimal noise, and have low maintenance needs, enabling operators to minimise environmental impact
