Introduction
Industrial steam boilers play an important role in many sectors, powering essential processes that drive productivity and efficiency. From manufacturing plants to food processing facilities, these systems provide the heat and steam necessary for a wide range of industrial applications.
In this guide, we’ll explore how industrial steam boilers work, their core components and processes. By understanding the mechanics behind these powerful systems, businesses can improve their operations, enhance safety and boost energy efficiency.
In this guide, we’ll explore how industrial steam boilers work, their core components and processes. By understanding the mechanics behind these powerful systems, businesses can improve their operations, enhance safety and boost energy efficiency.
What is an Industrial Steam Boiler?
An industrial steam boiler is a system used to generate steam by heating water. These boilers are typically larger, more powerful versions of the ones used in residential or commercial settings, designed to meet the high demands of industrial operations. They are built to produce steam at high pressures and volumes to ensure a continuous and reliable supply of thermal energy for a range of industrial processes.
The following components make up an industrial steam boiler:
- Boiler shell: the outer casing that contains all internal components and holds the water and steam within.
- Burner: this is where the fuel source is burned (such as gas, oil or electricity) to generate heat. The burner controls the fuel-to-air ratio, ensuring the boiler operates efficiently.
- Heat exchanger: a device that transfers the heat from the combustion process to the water. As the water absorbs heat, it turns into steam.
- Steam drum: the part of the boiler where the steam collects before being directed to the intended industrial process. It also helps to separate any residual water from the steam.
- Feedwater system: this system pumps water into the boiler to replace the water lost as steam. It ensures that the boiler has a continuous supply of water to produce steam.
- Control systems: these monitor and regulate various aspects of the boiler’s operation, such as pressure, temperature and safety parameters, to ensure optimal performance and compliance with safety standards.
Unlike smaller residential boilers, industrial steam boilers are designed to handle large volumes of water, higher pressures and more complex operational needs. The steam generated is then transported via pipes to different parts of the facility where it’s used for various applications, such as heating, power generation or industrial heating processes.
How Do Industrial Steam Boilers Work?
Below is a step-by-step breakdown of how industrial steam boilers work:
1. Water Enters the Boiler
The process begins with cold water entering the boiler’s feedwater system. This water is typically treated to remove impurities that could damage the boiler or reduce efficiency.
2. Heating the Water
The water flows into the main body of the boiler, where it’s heated by the burner. The burner uses fuel to create heat. This heat is transferred to the water through the heat exchanger.
In some systems, the burner is equipped with advanced controls to adjust the fuel-to-air ratio, ensuring that the combustion process is efficient and clean.
3. Water Turns to Steam
As the water absorbs the heat, its temperature rises until it reaches the boiling point, at which point it begins to convert into steam. The steam rises to the top of the boiler and is separated from any remaining water in the steam drum.
The steam is pressurised to ensure it remains in a gaseous state, even at higher temperatures.
4. Steam Collection and Distribution
The steam, now under pressure, collects in the steam drum, a large vessel designed to hold and separate the steam from any residual water. This ensures that only pure steam is sent out of the boiler.
Steam is then directed through pipes to the areas of the industrial facility where it is needed, whether for heating, power generation or other processes.
5. Pressure and Temperature Controls
To maintain safe and optimal operation, industrial steam boilers have a range of pressure and temperature controls. These systems constantly monitor and adjust the conditions inside the boiler to ensure that the steam is produced at the required pressure and temperature.
Boilers are equipped with safety valves that automatically release excess pressure to prevent accidents, ensuring the system operates within safe parameters.
6. Condensing or Reheating
After the steam is used, it condenses back into water. This water is either pumped back into the boiler for reuse (via a condensate recovery system) or sent out for treatment.
Some systems also use reheating techniques to improve efficiency, where the steam is cycled through the system to maintain consistent performance and reduce energy consumption.
Common Uses of Industrial Steam Boilers
Power generation
One of the primary uses of industrial steam boilers is in power plants, where they generate steam that drives turbines to produce electricity. The high-pressure steam produced by the boiler is sent to turbines, where it expands and spins the turbine blades, generating power.
These boilers are used in both large-scale electricity generation and backup power solutions in facilities that require a continuous energy supply.
Manufacturing Processes
Many manufacturing industries, such as chemical, textile and automotive, rely on steam for various processes. Steam is used for heating, drying, curing, cleaning and sterilising equipment. For example, the textile industry uses steam to set dyes and finish fabrics, while in the chemical industry, steam assists in the production of a range of chemicals.

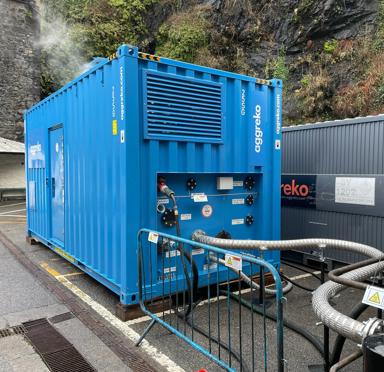

Food Processing

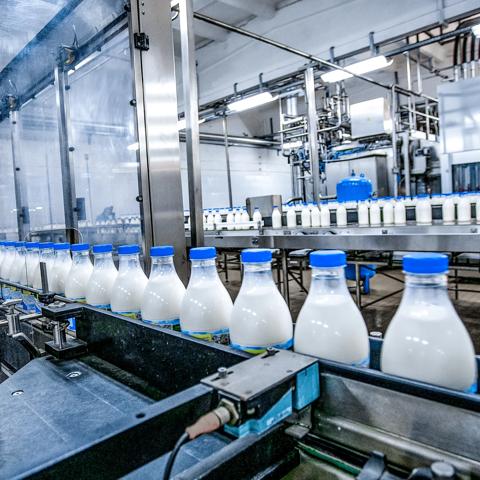

In the food industry, steam plays a role in cooking, pasteurising and sterilising food products. It is used to heat ingredients in cooking kettles, process milk in dairy plants or sterilise jars and containers in packaging lines.
Steam provides a clean and consistent heat source for the precise control needed in food production, where hygiene and consistency are vital.

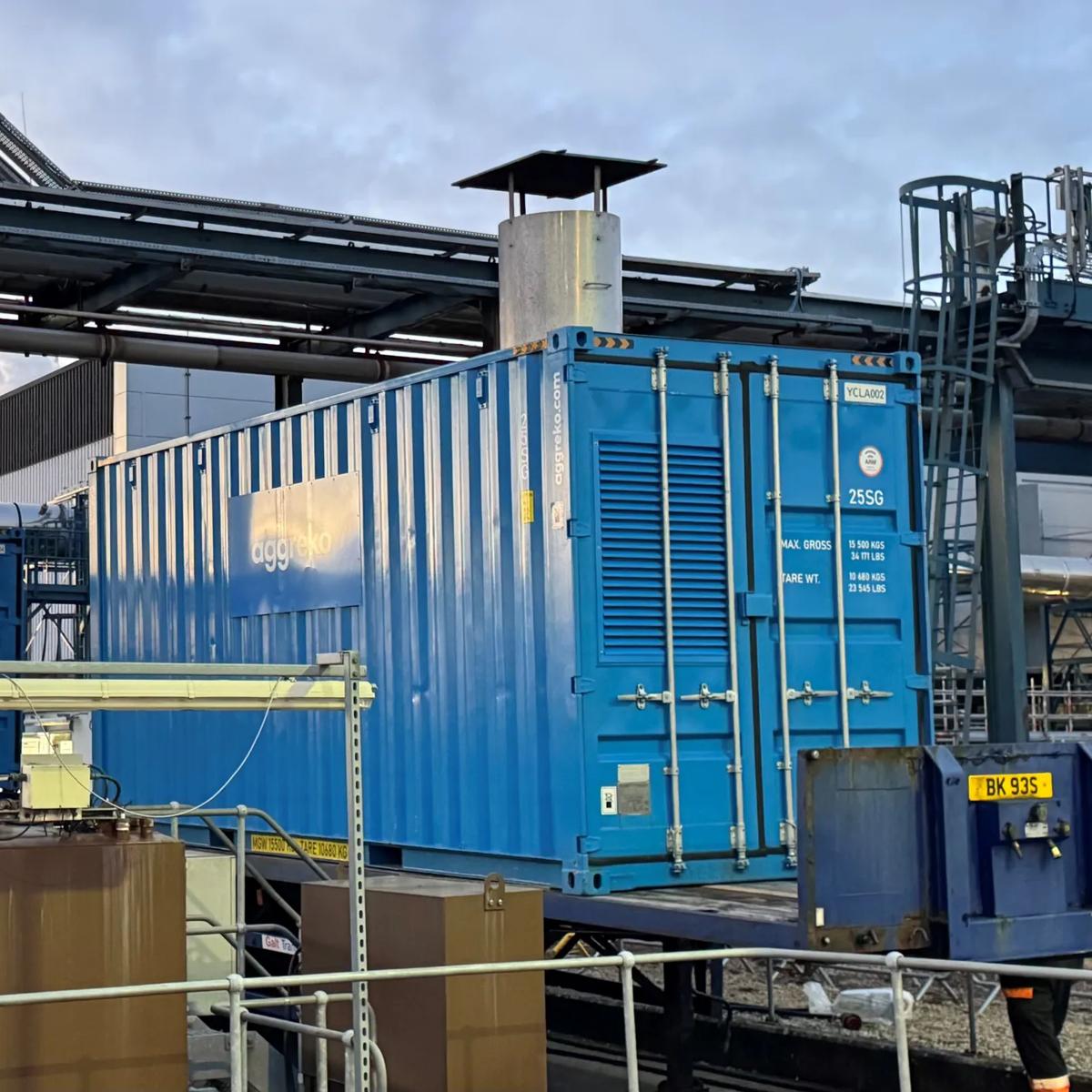

Pharmaceuticals and Healthcare
Industrial steam boilers are often used in pharmaceutical plants to sterilise equipment and materials, ensuring they meet stringent hygiene and safety standards. Steam is also used for sterilising surgical instruments in hospitals and healthcare facilities.
Boilers help maintain a sterile environment in labs and production areas to make sure the highest standards of cleanliness are upheld.
Heating and Hot Water Supply
In many large buildings, complexes or industrial zones, steam boilers are used for central heating and providing hot water. These systems are ideal for facilities that require a large and consistent supply of heat, such as in commercial buildings, hotels or sports complexes.
District Heating Systems
In some cities, industrial steam boilers are used in district heating systems, which provide heat and hot water to multiple buildings or even neighbourhoods. These systems are efficient as they centralise energy production and distribute it over a wide area.
Oil and Gas Industry
The oil and gas sector makes use of industrial steam boilers for several applications, including steam flooding in oil extraction and the refining of oil. Steam is used to help separate crude oil from other materials and improve the extraction process.
Key Benefits of Industrial Steam Boilers
When used efficiently and maintained properly, industrial steam boilers provide significant benefits:
- Energy efficiency: modern steam boilers are designed to operate at high efficiency, reducing fuel consumption and operating costs.
- Reliability and consistency: they are engineered for reliability, ensuring that industries relying on them for heat or steam can depend on uninterrupted service.
- Safety: these systems are designed with multiple safety features, including automatic shutdown mechanisms, pressure relief valves and advanced control systems, to protect the equipment and the personnel operating them.
- Environmental benefits: by improving fuel efficiency and incorporating cleaner combustion technologies, modern boilers can reduce the emission of greenhouse gases and other pollutants.
- Versatility and adaptability: they can be used in a variety of industries and applications and can be scaled up or down to meet the specific needs of different operations.
- Cost-effective operation: while the initial investment can be significant, the long-term savings generated by its efficiency make it a cost-effective choice for many industries.
Keeping Industrial Steam Boilers Running Smoothly
To ensure that industrial steam boilers continue to operate at peak performance, regular maintenance is essential. Proper care not only extends the lifespan of the equipment but also helps to maintain energy efficiency, reduce operation costs, and prevent costly downtime.
Here are some key maintenance practices:
- Regular inspections: routine checks are essential for identifying potential issues before they become serious. Early detection of problems such as leaks, corrosion or wear and tear can prevent unexpected breakdowns and costly repairs.
- Cleaning and descaling: over time, scale and debris can collect inside the boiler, especially in the heat exchanger and water tubes. Regular cleaning and descaling can help to maintain optimal heat exchange efficiency.
- Water treatment: the quality of the feedwater used in the boiler is critical to its performance and longevity. Hard water, which contains high levels of minerals, can cause scale formation and corrosion, reducing the efficiency of the system.
- Pressure and temperature monitoring: monitoring these can ensure safe and efficient operation. Even though boilers are typically equipped with automated controls that regulate pressure and temperature levels, manual checks should also be performed.
- Burner maintenance: regular maintenance of the burner ensures that the heat required to convert water into steam operates efficiently and safely. This includes checking the fuel-to-air ratio, inspecting the burner for wear and tear, and ensuring it is clean and free of debris.
- Safety valve testing: over time, these valves can become clogged, corroded or faulty, preventing them from functioning correctly. Regular testing and servicing will ensure they open properly in case of an emergency.
- Regular calibration of control systems: calibrating the control systems in industrial steam boilers periodically will ensure they function accurately. This helps maintain performance and safety.
- Updating and upgrading equipment: as boiler technology evolves, older systems may become less efficient or non-compliant with current regulations. Upgrading or retrofitting certain components can improve efficiency, reduce emissions and extend the life of the boiler.
By following a regular maintenance schedule, industrial steam boilers can continue to operate efficiently and safely, providing the necessary steam and heat for industrial processes. It also helps to avoid costly repairs and downtime.
Industrial steam boilers are vital components in numerous sectors, driving essential processes that require high-efficiency heat and steam. Understanding how they work, their key components and the benefits they provide is important for businesses looking to optimise energy use, enhance safety and improve overall performance.
