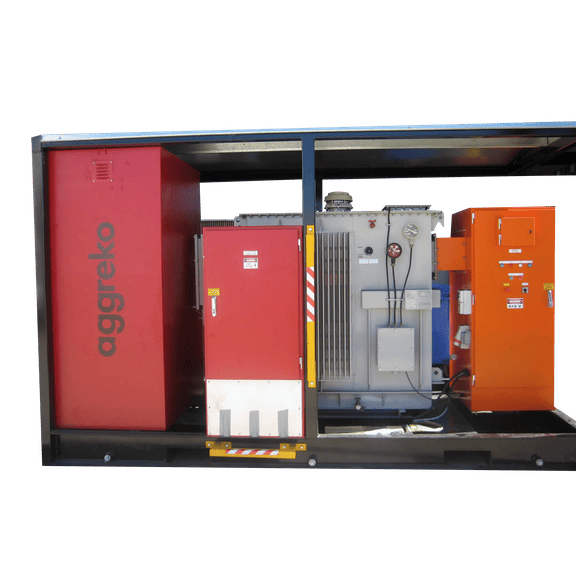

Transformer 2500 kVA
A 2500kVA transformer substation uses transformers to step up or step down voltage levels. It is completely assembled and includes HV switchgear, protection relays, control equipment, and auxiliary systems to ensure the safe and reliable operation of the electrical network.
Features
- 2500 kVA power rating
- Custom-built
- Voltage transformation up to 6.6 kV, 11 kV, or other required system voltages
- Suitable for operation on both 50 Hz and 60 Hz power systems
- Built-in protection and control systems
Benefits
- Constructed to meet the rigorous demands of every industry
- Fully integrated with switchgear and protection functions
- Handles large site loads with a single unit
- Connects easily with 50 Hz and 60 Hz power systems
- Distributes power across large sites
Max Ambient Temp
45° C
Electrical Rating
2500 kVA
Voltage Range
High Voltage
Height (m)
2.6
Length (m)
6.1
Weight (kg)
8800
Width (m)
2.35
Information to be used as a guide, full specification data please contact us
