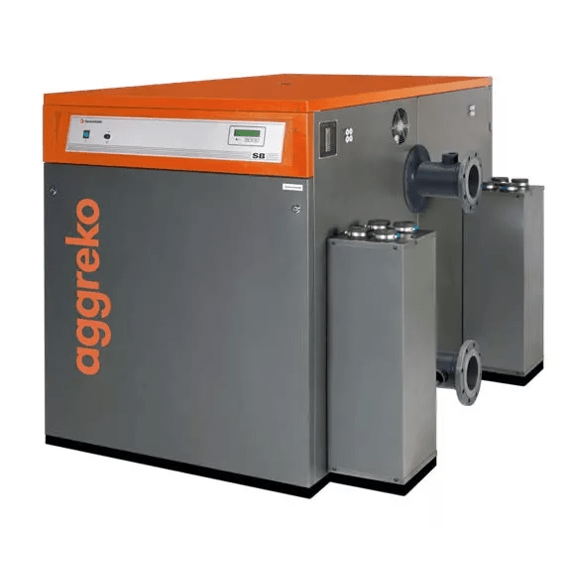

600 kW Electric Boiler / Liquid-Cooled Load Bank
Whether you need 90°C hot water for hospitals and food manufacturing facilities or require heat load testing for a data centre cooling system, this unit is the ideal choice. Due to variable regulation and control equipment, the boilers offer universal applicability, being adaptable to a wide selection of operations. Modern design as well as small dimensions are predominant external features. When bigger outputs are required, two or more boilers can be connected in series or in parallel. Operating temperature is max. 95 °C, and max. pressure is 6 / 16 bar.
Equipment shown may not be representative of equipment currently available
| Connections | DN100 / DN125 PN16 |
|---|---|
| Heating Capacity | 600kW |
| Power supply | 400v 3ph |
| Rating | 866A |
| Length | 1.37 x 0.81 x 1.55m |
|---|---|
| Weight (Net) | 425kg |
| Weight (kg) | 760 kg (Gross) |
Benefits
- Suitable for hot water applications in hospitals and manufacturing, including cleaning and sterilisation
- Used for liquid cooled applications such as testing load on chillers and CDU in data centres
- Better utilisation of electric energy
- Using bivalent operation to optimise operating costs
- Safe supply of heat
- Easy integration in existing installations and systems
- Higher efficacy of the installation
- Non-pollutant heat production
- Little space required
Features
- Pressure vessel with heating elements inserted from above
- Thermal mineral fibre insulation
- Electronical fittings for control and regulation
- Safety temperature limiter (110 °C)
- Fuses or circuit breakers for each group of elements
