Introduction

A heat exchanger is a piece of equipment used to transfer heat between two or more fluids, including liquids, gases or a combination of the two. These systems are vital in many industries, including power generation, heating, ventilation and air conditioning (HVAC) and manufacturing.

The main job of a heat exchanger is to efficiently manage temperature changes without allowing the fluids to mix. They help businesses reduce energy costs and environmental impact.

Understanding how they work and how they can be used is important for anyone involved in industrial processes, energy management or maintaining large-scale systems.

What Does a Heat Exchanger Do?

1. Heat Transfer

The most fundamental task of a heat exchanger is to move heat from a hot fluid to a cooler one. For example, in a heating system, a heat exchanger transfers heat from a hot fluid like water or steam to another fluid, such as air that is then circulated to warm a room, or to a separate water loop. This helps to maintain the desired temperature in the system while preventing any mixing of the fluids.

2. Temperature Control

Heat exchangers ensure that the temperature of one fluid remains within the desired range while also cooling or heating the other fluid as necessary. For example, in power plants, they control the temperature of steam or water to optimise energy production.

3. Energy Efficiency

They’re used to recover energy, making systems more efficient. For example, in HVAC systems, they can transfer heat from the exhaust air to incoming fresh air, reducing the energy needed to heat or cool the building.

4. Preventing Overheating

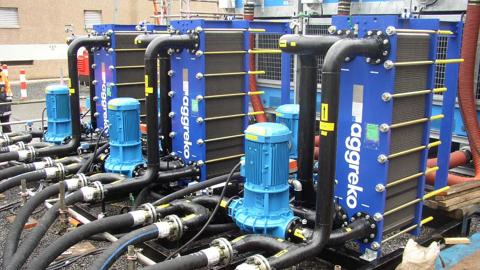

In industrial applications like oil refineries, power plants and manufacturing plants, heat exchangers prevent equipment from overheating. By transferring excess heat from machinery or chemical processes to a cooler fluid, they prevent damage and ensure that the system operates within safe temperature limits.

5. Supporting Industrial Processes

In many industries, processes require specific temperature conditions for safety, performance and product quality. Heat exchangers provide the necessary temperature regulation for chemical reactions, fermentation, refrigeration and more.

Loading component...

How Does a Heat Exchanger Work?

The heat exchanger transfer process takes advantage of the natural flow of heat, moving it from a hotter fluid to a cooler one through a solid barrier, typically a metal or another good conductor of heat.

The basic principles behind them are conduction and convection:

Conduction: heat moves from the hotter fluid to the cooler one through direct contact with the surface of the heat exchanger. The metal or material of its surface conducts the heat from one side to the other.
Convection: once heat is transferred to the cooler fluid at the surface, it spreads throughout the fluid via convection, which is the movement of heat within the fluid itself as it circulates or flows.

In practice, the design of a heat exchanger maximises this heat transfer by increasing the surface area between the fluids, improving the efficiency of the process. This can be achieved through different configurations, such as tubes, plates or coils.

Flow arrangements also affect how efficiently heat is transferred. The two main flow types are:

Counterflow: the fluids flow in opposite directions, which is typically the most efficient arrangement.
Parallel flow: the fluids flow in the same direction, which can be less efficient than counterflow but might be used in certain systems for specific needs.

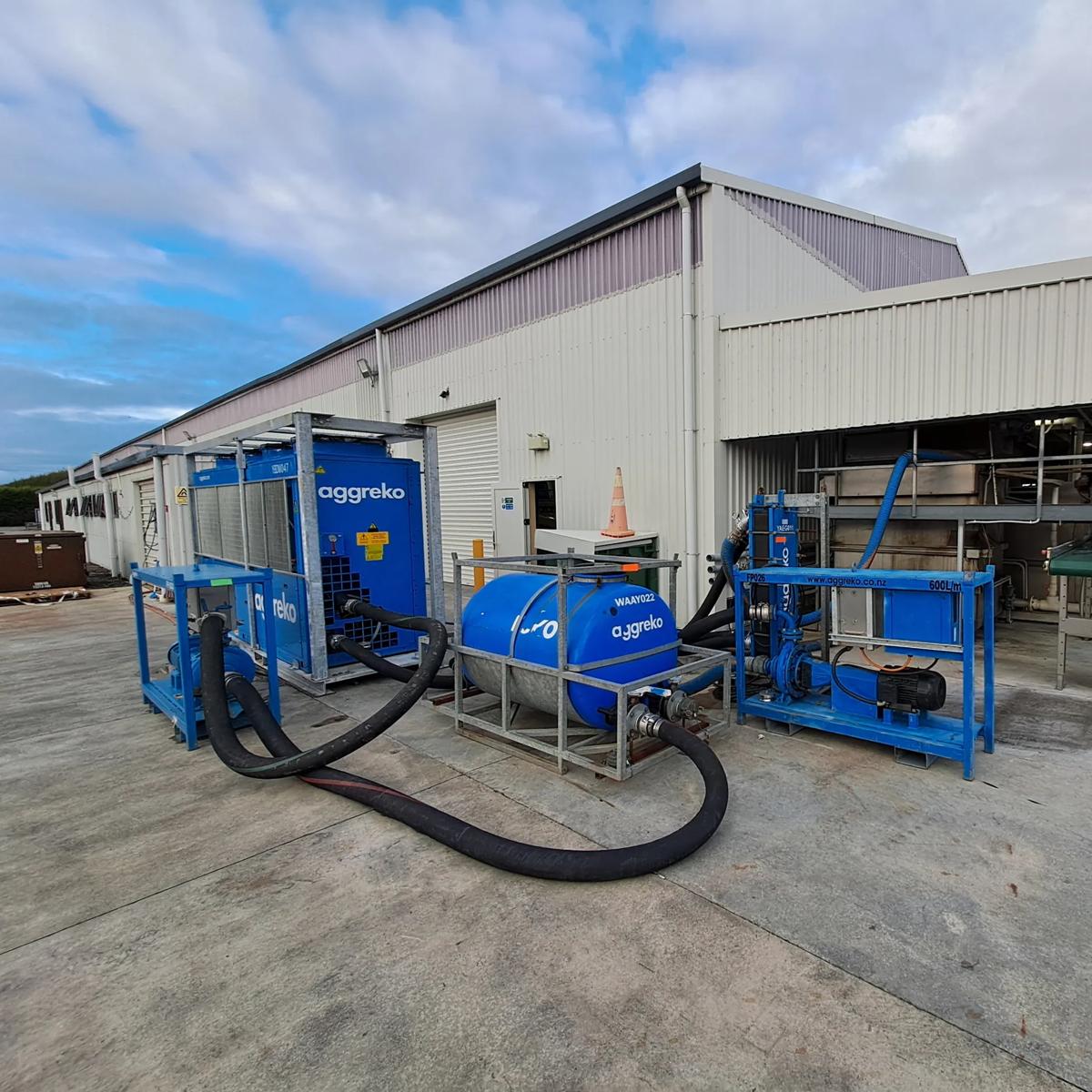

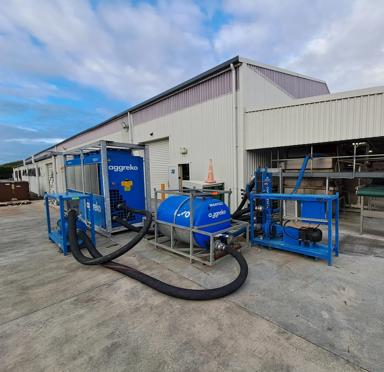

Through these mechanisms, heat exchangers can control temperature in complex systems, offering consistent performance and energy efficiency whether you’re cooling down a hot gas stream, heating water for industrial use or exchanging energy between air flows.

Loading component...

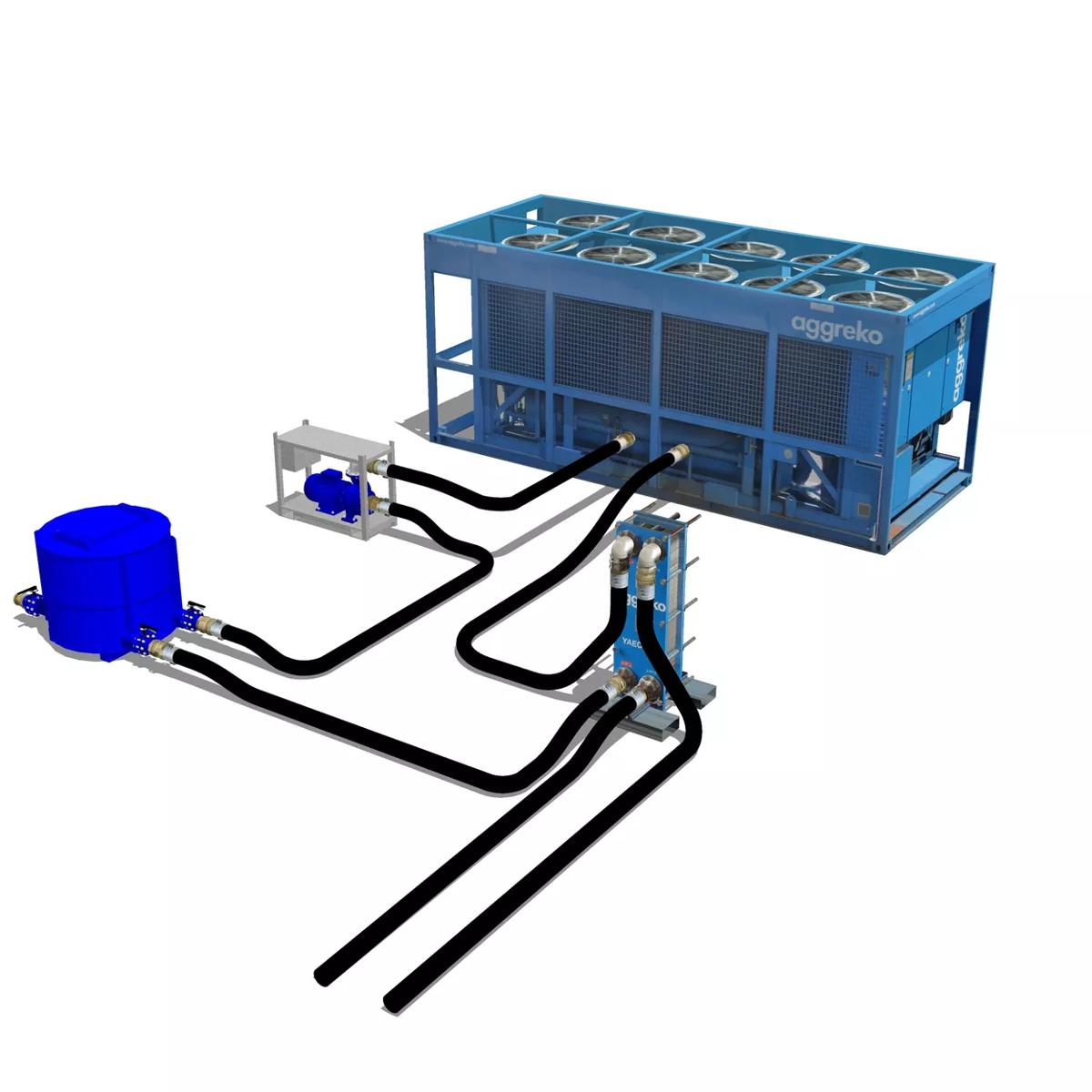

3D illustrations of our temperature control heating and cooling equipment

Loading component...

Types of Heat Exchangers

Heat exchangers come in a variety of designs, each suited to specific applications depending on the fluids involved, the required temperature transfer and space constraints. Some of the most common types of heat exchangers are:

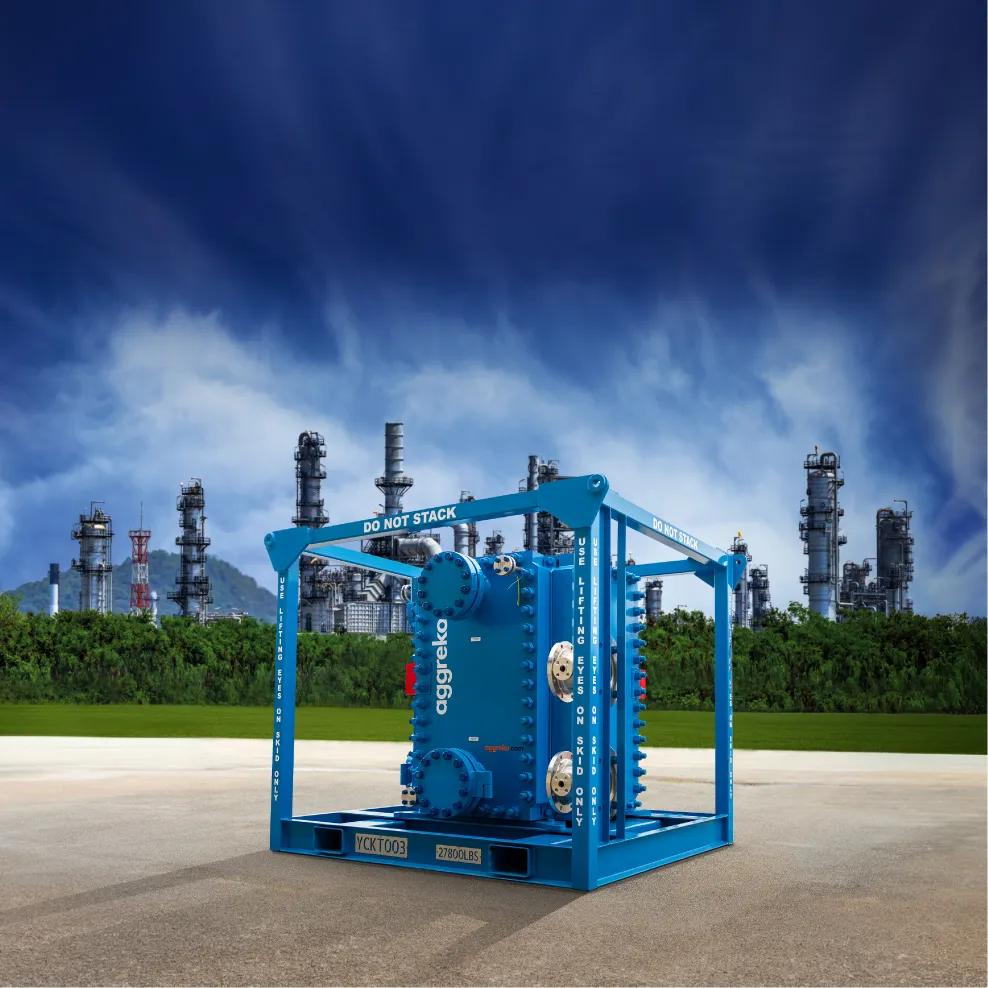

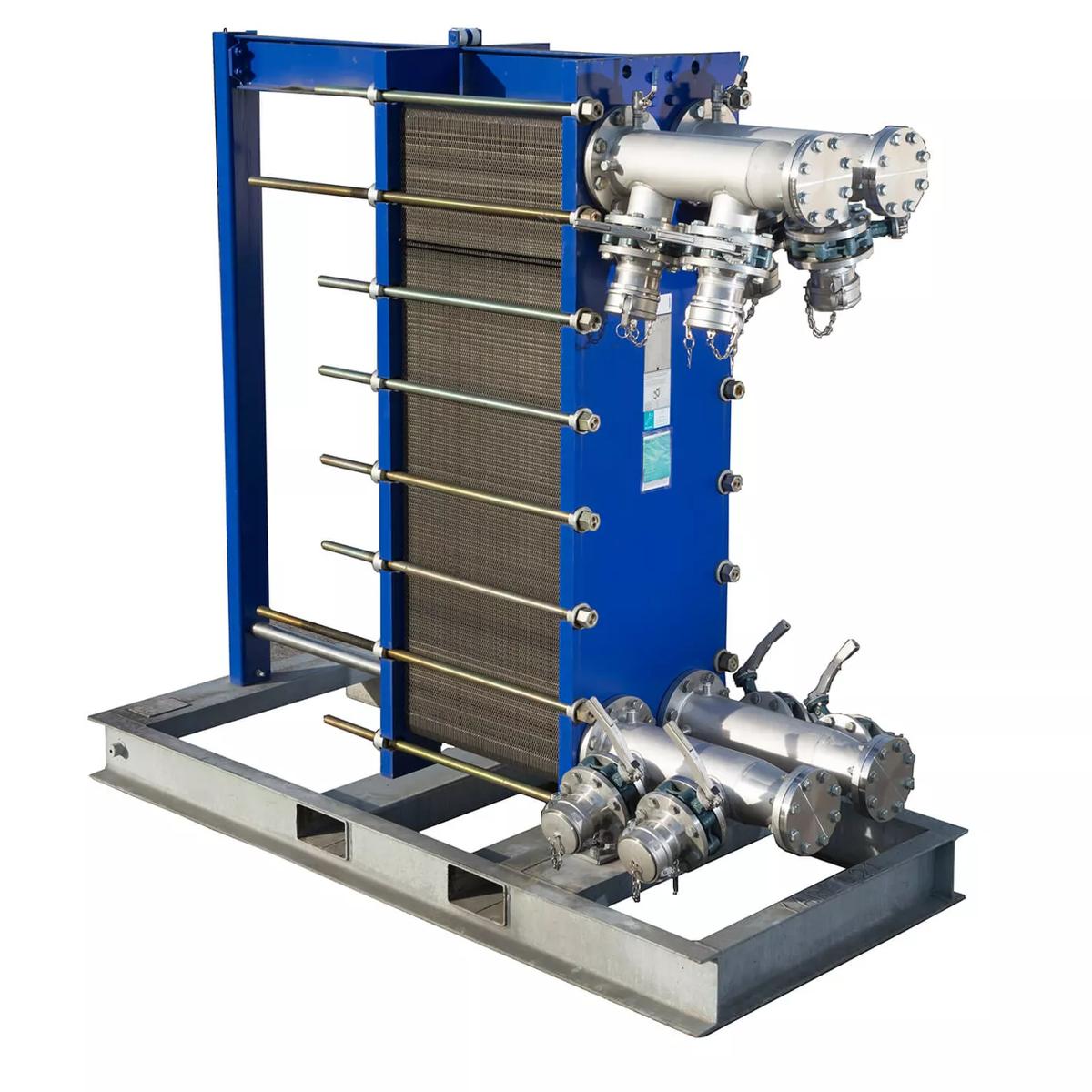

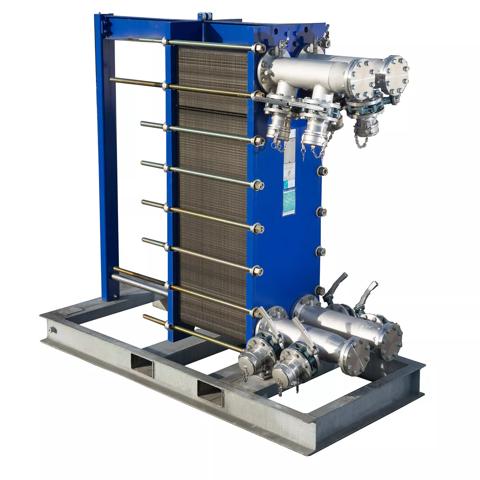

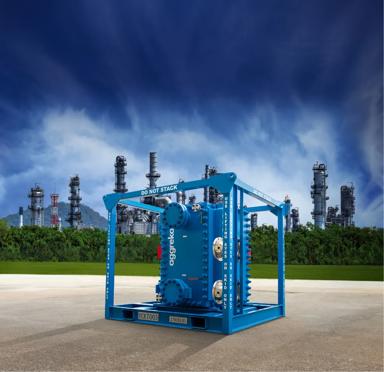

Plate heat exchangers
Shell and tube heat exchangers
Air-cooled heat exchangers
Double pipe heat exchangers
Spiral heat exchangers
Fin-tube heat exchangers

Loading component...

Loading component...

How Efficient Are Heat Exchangers?

An efficient heat exchanger can minimise energy loss, reduce operational costs and improve overall system performance. The efficiency is typically high, achieving efficiencies of 70% to 90%, though this can vary depending on the system and the fluid properties involved.

Several factors can influence the efficiency of a heat exchanger:

Temperature difference: the greater the temperature difference between the two fluids, the more efficient the exchange process. However, extremely high temperature differences may cause thermal stress and material wear, so balancing efficiency and longevity is key.
Flow arrangement: counterflow designs are generally the most efficient because the fluids flow in opposite directions, ensuring a greater temperature difference. Parallel or crossflow designs may be less efficient in comparison.
Surface area: the larger the heat exchanger’s surface area, the more heat can be transferred. This is why heat exchangers are often designed with plates, fins or coils to maximise the surface area without taking up excessive space.
Fluid properties: the type of fluid (its flow rate, viscosity and thermal conductivity) can affect heat transfer efficiency. For example, fluids with higher thermal conductivity will transfer heat more efficiently than those with lower conductivity.
Fouling and maintenance: over time, heat exchangers can accumulate deposits from the fluids they process (known as fouling), which reduces the efficiency of heat transfer. Regular maintenance and cleaning are essential to maintaining peak efficiency.

Loading component...

How to Improve Heat Exchanger Efficiency

To improve the efficiency of heat exchangers, several strategies can be employed:

Optimise flow rates: adjusting the flow rates of the fluids can enhance heat transfer. For example, higher flow rates may increase the heat transfer, but this can also lead to higher energy consumption, so the optimal balance must be found.
Use of enhanced surfaces: using fins, rough surfaces or specialised coatings can increase the surface area, improving heat transfer.
Regular maintenance: ensuring that the heat exchanger is clean and free of fouling can keep it running at peak efficiency.
Upgrading equipment: in some cases, upgrading to more advanced heat exchanger designs (such as switching from shell-and-tube to a plate heat exchanger) can boost efficiency.

From reducing energy consumption in HVAC systems to preventing overheating in industrial plans, heat exchangers provide crucial temperature control, energy recovery and process optimisation. With the right heat exchanger in place, companies can enhance energy efficiency, reduce environmental impact and ensure the smooth operation of their systems.
