Types of Heat Exchangers

Introduction

Heat exchangers come in several designs, each tailored to specific needs, environments and applications, but the primary function remains the same - to transfer heat between two or more fluids. In this post, we’ll explain the main types of heat exchangers to help you choose the right one for your needs.

What is a Heat Exchanger?

A heat exchanger is a device designed to transfer heat through a surface between two or more fluids without them mixing. For example, in HVAC systems, a heat exchanger helps maintain comfortable indoor temperatures by transferring heat from the air or water to the system’s refrigerant. This process optimises energy use and ensures temperature control systems work efficiently.

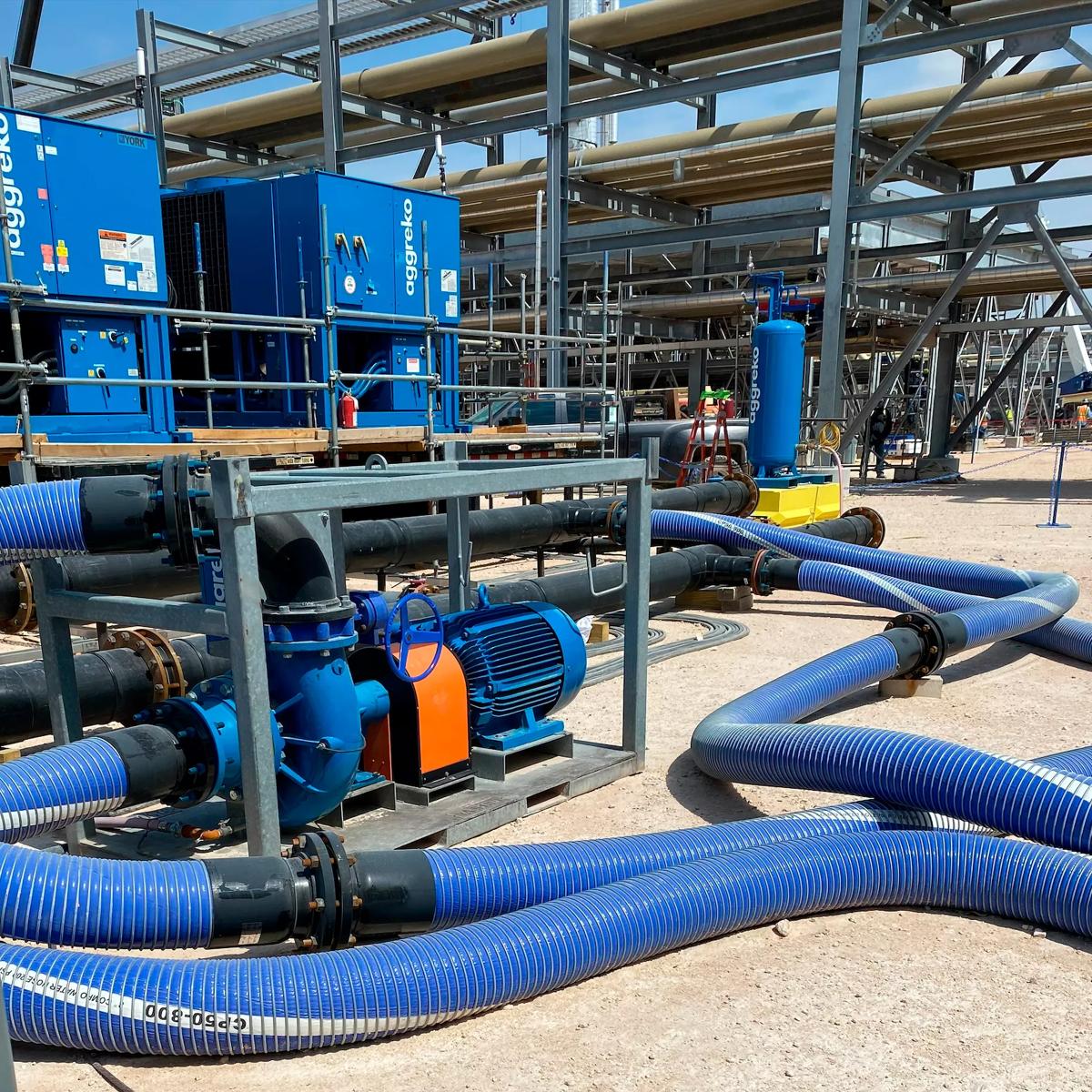

Main Types of Heat Exchangers

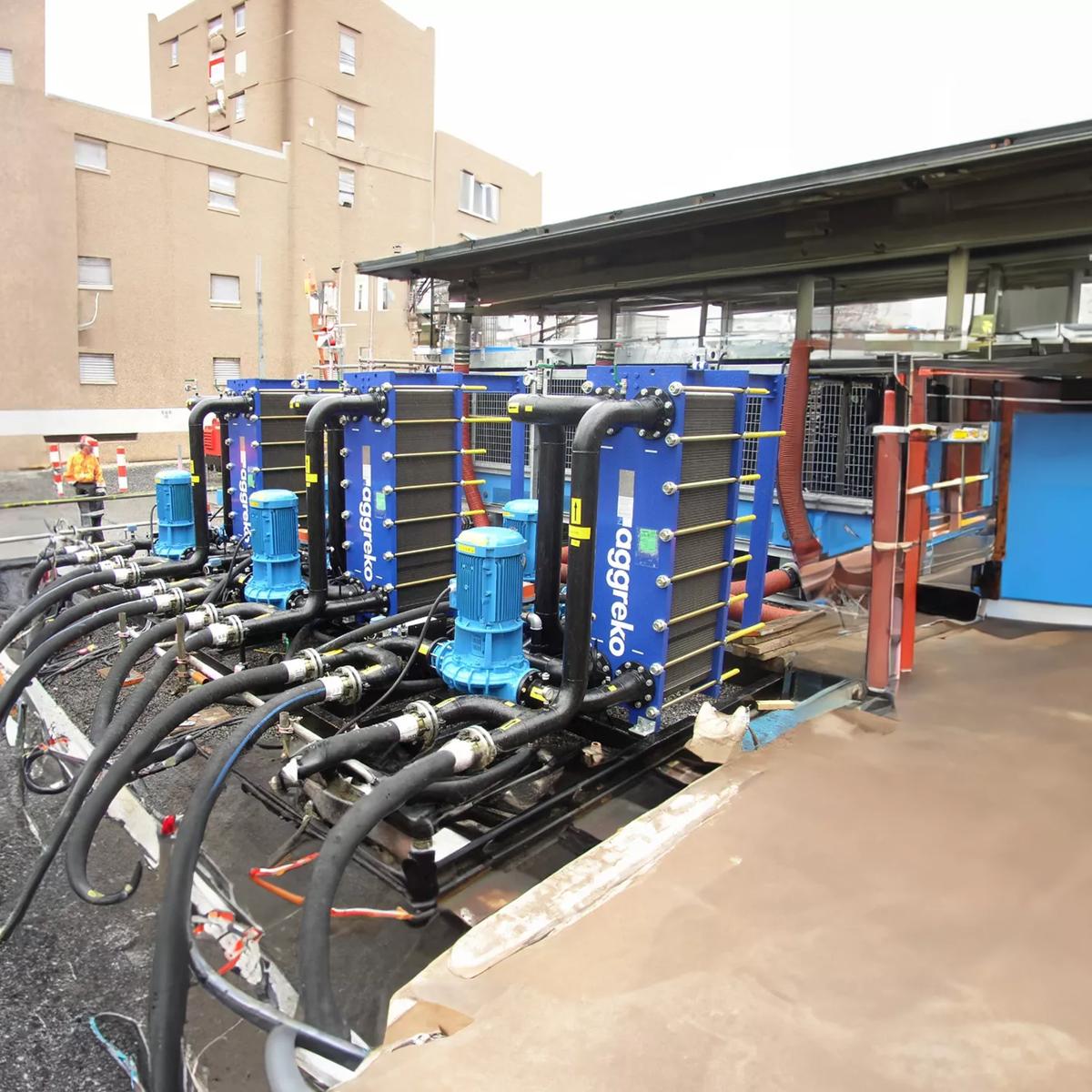

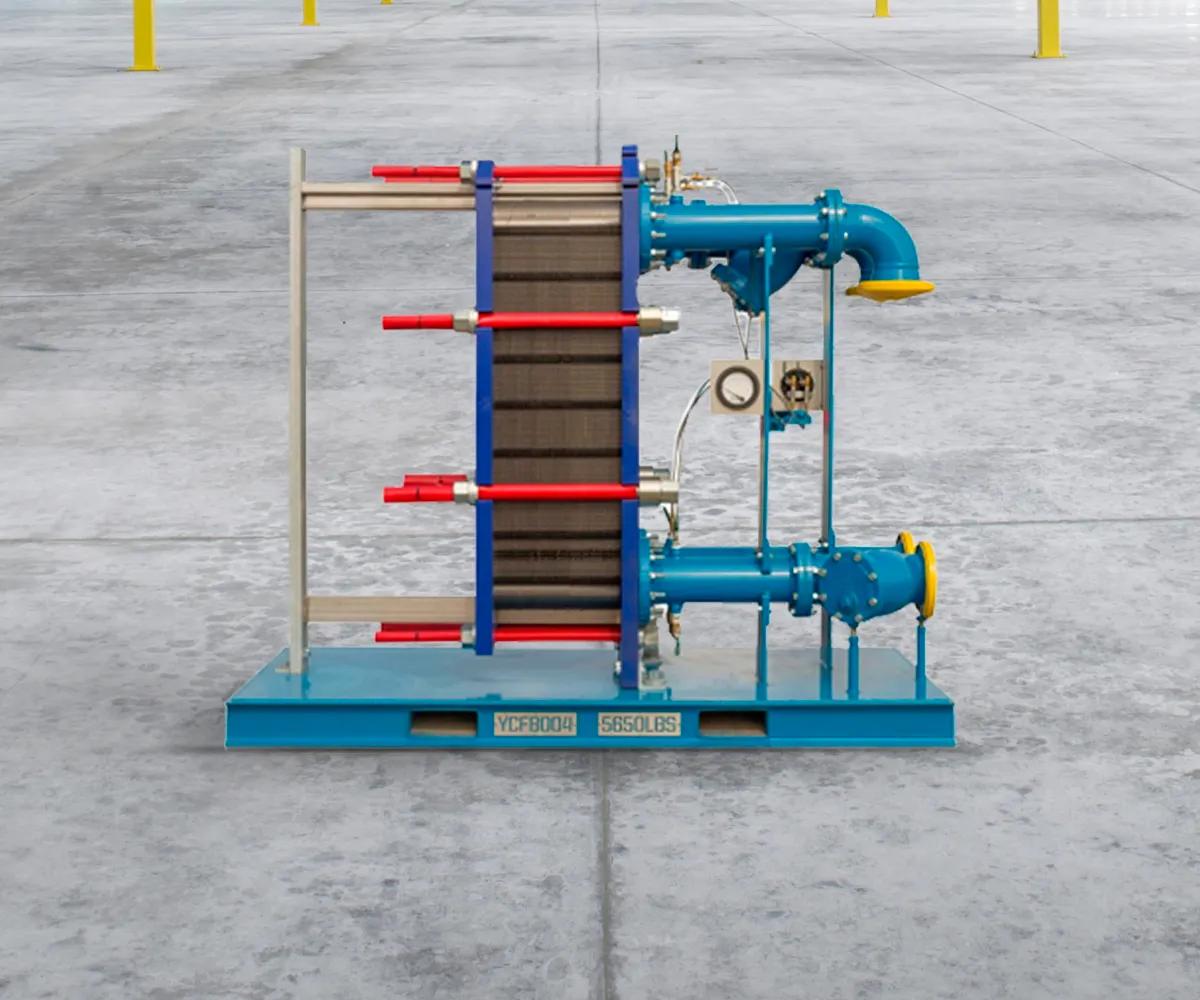

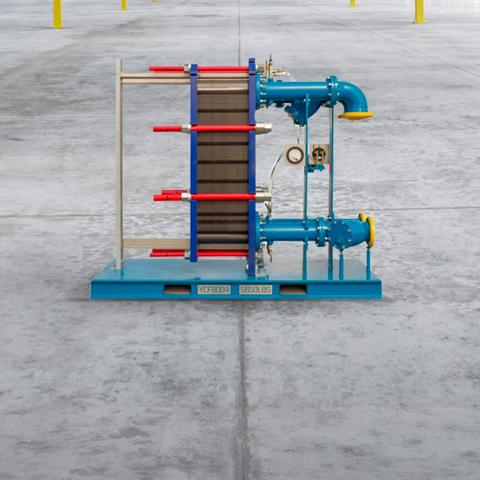

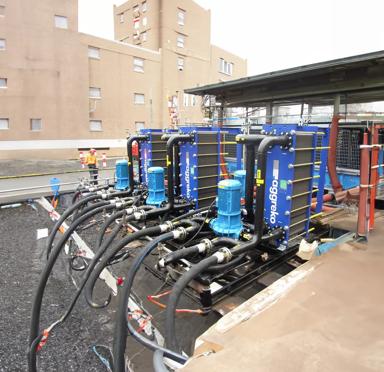

Plate Heat Exchangers

Plate heat exchangers are compact, efficient and versatile devices with several plates stacked together to form multiple flow channels. Each plate is typically made from stainless steel or other corrosion-resistant materials and has channels that allow fluids to flow. The plates are designed to have a large surface area for heat transfer, and the fluid alternates between plates in a counterflow arrangement.

These heat exchangers are commonly used in HVAC systems, food and beverage processing, pharmaceutical industries, and refrigeration systems.

Advantages

  • Compact design: plate heat exchangers are more compact than shell and tube exchangers, making them ideal for applications where space is at a premium.
  • High heat transfer efficiency: the large surface area provided by the plates facilitates efficient heat transfer, often outperforming other types of heat exchangers in terms of efficiency.
  • Easy maintenance and cleaning: plate exchangers are easy to dismantle for cleaning, making them ideal for industries where hygiene is critical, such as food processing.

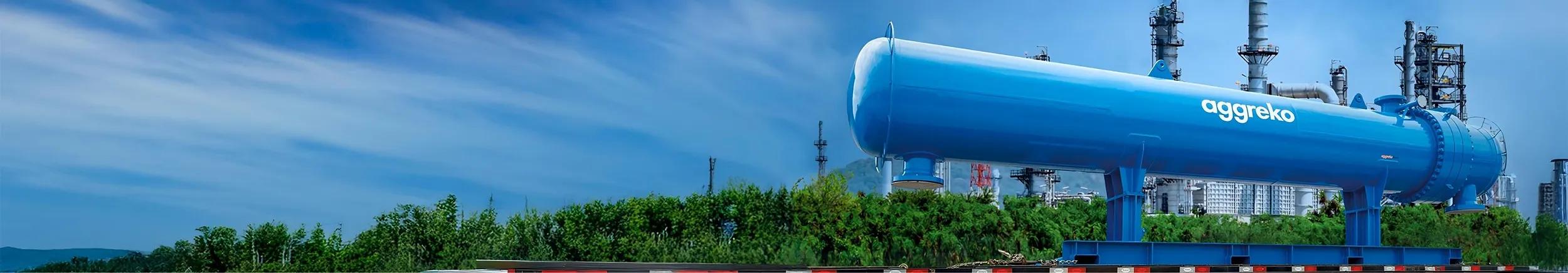

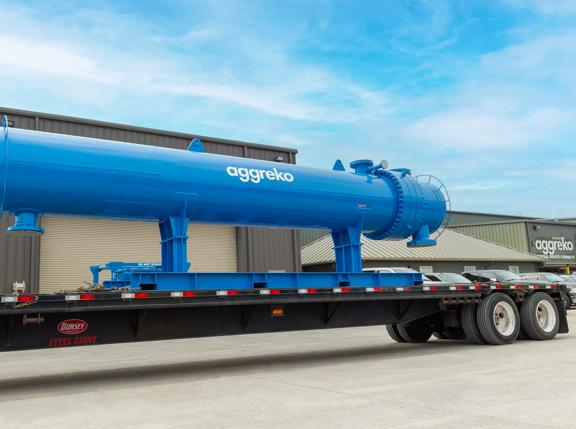

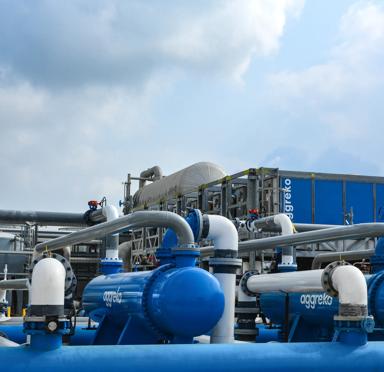

Shell and Tube Heat Exchangers

Shell and tube heat exchangers are the most traditional and widely used types, especially in industries where space is limited or high heat transfer ratesare required. They consist of a large cylindrical shell that contains a bundle of tubes. One fluid flows through the tubes, while the other flows over the tube surfaces within the shell. Heat is transferred through the walls of the tubes from the hotter fluid to the cooler one.

Advantages

  • High pressure and temperature tolerance: shell and tube heat exchangers are ideal for applications that require handling high pressures or extreme temperatures, making them common in the oil, gas and chemical industries.
  • Large surface area: the design allows for a large surface area within a relatively small volume, maximising heat exchange efficiency.
  • Versatility: they can be customised to handle a variety of fluid types and temperatures, including corrosive or toxic fluids.

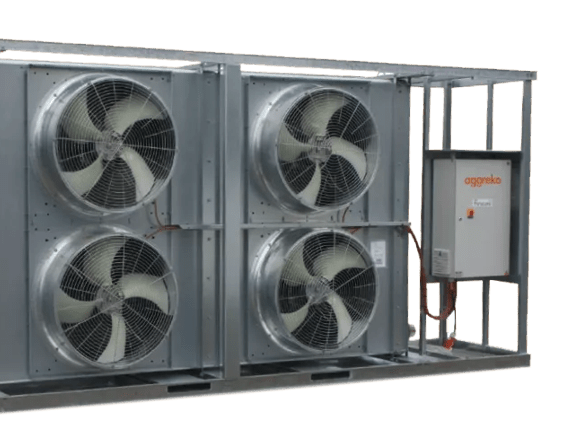

Air-Cooled Heat Exchangers

Air-cooled heat exchangers use ambient air to cool the fluid passing through the system, eliminating the need for water or other cooling fluids. Typically, they consist of finned tubes that enhance the surface area for heat transfer. A fan or blower system blows ambient air across these finned tubes, cooling the fluid inside. This process is highly effective for applications where the water supply is limited or unavailable.

Devices are commonly used in remote or off-grid areas, such as oil refineries, gas compression stations and power plants.

Advantages

  • Water conservation: since they rely on air rather than water, air-cooled exchangers are ideal in areas where water is scarce or where water usage is restricted.
  • Low maintenance: these systems generally require less maintenance than water-cooled heat exchangers, as they don’t involve water treatment or the risk of scaling or fouling.
  • Environmentally friendly: they are often considered more eco-friendly since they avoid the environmental impact of using large amounts of water.

Double Pipe Heat Exchangers

Double pipe heat exchangers are one of the simplest types of heat exchangers, ideal for small-scale applications where heat transfer needs are moderate. This design consists of two concentric pipes. The inner pipe carries the hot fluid, while the outer pipe carries the cold fluid. Heat is transferred through the pipe walls from the hot fluid to the cold fluid. This type of exchanger can be configured for parallel flow, counterflow or a combination, depending on the application.

These devices are used in smaller, low-flow applications, such as chemical processing, water heating systems, and small-scale industrial operations.

Advantages

  • Simplicity: double pipe heat exchangers are relatively simple in design, making them cost-effective for smaller applications.
  • Ease of installation and maintenance: the simplicity of the design allows these heat exchangers to be easier to install and maintain, reducing downtime and service costs.
  • Compactness: for smaller heat transfer needs, this design provides an efficient solution without taking up much space.

Different Types of Heat Exchangers in HVAC Systems

Heat exchangers play an important role in HVAC systems, facilitating the transfer of heat between various fluids to maintain comfortable indoor temperatures and ensure energy efficiency.

The main types of heat exchangers in HVAC systems and why they are suitable include:

  1. Shell and tube heat exchangers

    These exchangers are often used in systems where space is available, and higher durability and reliability are required. Their robust design allows them to function well in systems requiring frequent heating or cooling cycles.

  2. Plate heat exchangers

    They are ideal for applications where space constraints are a concern. Plate heat exchangers are commonly used in residential and commercial HVAC systems, especially when integrating with heat pumps or air conditioning units.

  3. Air-cooled heat exchangers

    They are suited for applications like refrigeration units, large-scale cooling systems in commercial buildings and HVAC systems in remote locations where water access is a challenge.

  4. Double pipe heat exchangers
These are often used in smaller HVAC systems, particularly in residential or light commercial applications, due to their simple design.

Choosing the Right Type of Heat Exchanger

Selecting the most appropriate heat exchanger is key for optimising system performance, minimising energy consumption and ensuring long-term reliability.

Here are the key considerations to keep in mind when choosing the right heat exchanger for your system:

1. Space Constraints

Plate heat exchangers are often a great choice for areas with limited space due to their compact design and high heat transfer efficiency. If you have more room and require high capacity, shell and tube heat exchangers might be more appropriate.

2. Energy Efficiency

Energy efficiency directly impacts the operational costs and sustainability of the systems. Plate heat exchangers are known for their high energy efficiency. Their design, which allows for a large surface area within a compact volume, enables them to achieve excellent heat transfer. Air-cooled heat exchangers can also be an option, especially where water is limited or unavailable.

3. Maintenance Needs

Ease of maintenance is important for ensuring the longevity and optimal performance of a heat exchanger. Air-cooled heat exchangers typically require minimal maintenance since they don’t involve water or chemicals, which can lead to scaling or fouling. Plate heat exchangers also tend to be easier to maintain and clean.

4. Fluid Compatibility

The types of fluids in your system - whether water, oil, refrigerants or other substances - must be considered, as some heat exchangers are better suited to handle specific fluids. Shell and tube exchangers are versatile as they can manage a wide range of fluids, including aggressive, high-pressure or high-temperature liquids. Plate exchangers are often selected for systems involving corrosive or sensitive fluids, as they resist corrosion while ensuring efficient heat transfer.

When selecting a heat exchanger, it’s important to weigh these factors and determine which design will best suit your system’s needs. If you’re unsure about which heat exchanger is the right fit, consult with our experts who can provide valuable guidance and help you make an informed decision tailored to your unique system.
