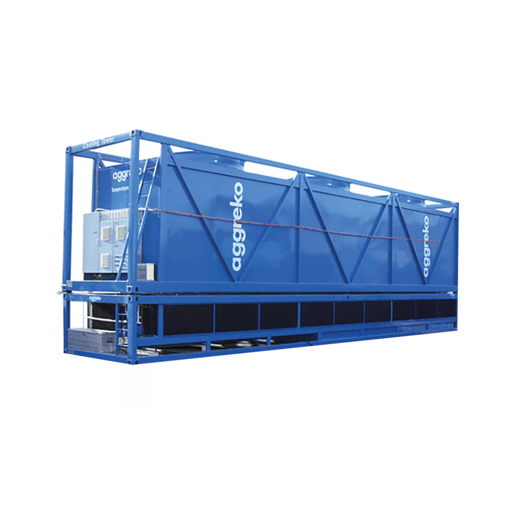

Industrial Cooling Tower model CT2500
Cooling tower hire for emergencies, planned projects or supplementary cooling - keeping your facility operating at peak performance. The CT2500 cooling tower is designed to provide high performance for a minimal unit size. The unit is integrated into a 20" ISO container, and comes complete with water treatment unit and VSD fan speed control.The specially designed drift eliminators reduce drift to 0.002% of flow. When supplied with chilled water, the cooling tower can also be used as a bulk air cooler for applications requiring large air flow.
| Cooling Capacity | 1900 kW (at 37°C, EWT, 19 °C WB) |
|---|---|
| Min/Max Water Flow (l/s) | 30/80 |
| Length | 6.05m |
|---|---|
| Width (m) | 2.44 |
| Height | 2.89m |
| Weight | 4500kg |
Features
- Designed and assembled to Aggreko’s standards.
- Packaged into 20 ft. ISO container frame.
- Brentwood drift eliminators designed for forced draft.
- Fully enclosed and protected from direct sunlight.
- Fan unit driven by a variable speed drive.
- Controlled operation of condenser unit fans.
Benefits
- Safe and reliable operation for rental applications.
- Ease of transportation, handing and protection.
- Reduces drift to a rate significantly lower than that required by law.
- Increases safety with respect to microbial growth.
- Regulates fan speed proportional to sump temperature.
- Maximises efficiency, minimises noise and prevents overcondensation when coupled with water-cooled chillers.
