Customised large-scale rental cooling towers

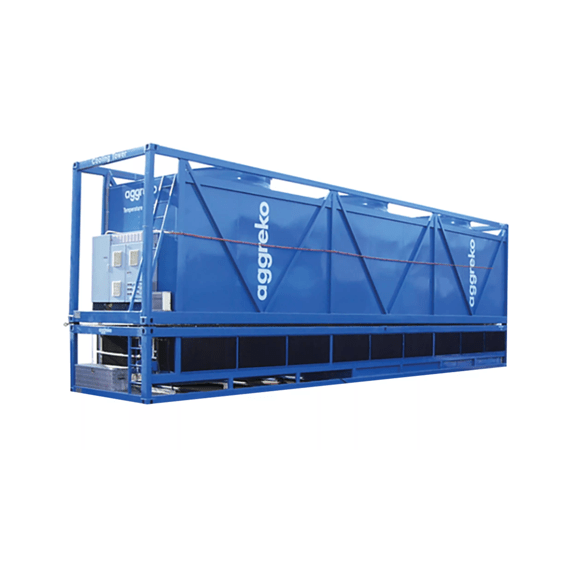

Cooling Tower CT10000

The draft counter-flow cooling towers model CT10000 are designed for high heat transfer performance and low heat consumption. The lower section includes the inlet louvers, water collection sump and water piping. The upper section includes the fill, nozzles and headers, three axial flow fans and high-efficiency drift eliminators.

Min/Max Water Flow (l/s) 40/180 l/s
Voltage (V) 380-415V 50Hz
Length (m) 12.19
Width (m) 2.44
Height (m) 4.18
Weight (kg) Operating - 17500 Shipping - 10600


  • Designed and assembled to Aggreko's high standards
  • Packaged into 40 ft. container frame
  • Drift eliminators designed for forced draft
  • Fully enclosed and protected from direct sunlight
  • Fan unit driven by a variable speed drive
  • Controlled operation of unit fans


  • Safe and reliable operation for rental applications
  • Ease of transportation, handling and protection
  • Reduces drift to a rate significantly lower than that required by law
  • Increases safety with respect to microbial growth
  • Regulates fan speed proportional to sump temperature
  • Maximises efficiency, minimises noise and prevents over-condensation when coupled with water-cooled chillers
