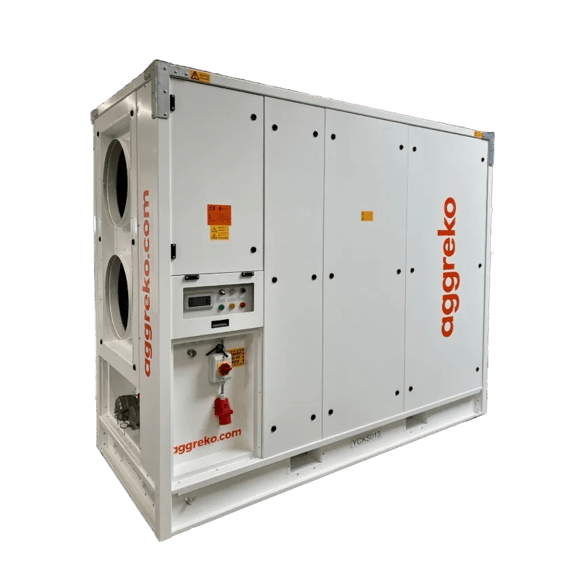

200 kW Air Handling Unit
The 200 kW Air Handling Unit is a durable, mobile solution designed for high-capacity heating and cooling in commercial and industrial applications. With turbo mode capability and advanced fans, it delivers precise airflow and temperature control. Its compact frame, flexible lifting options make it easy to deploy and operate across diverse environments.
Equipment shown may not be representative of equipment currently available
Capacity
200 kW nominal, (up to 270 kW heating / 200 kW cooling)
Voltage
400 V / 3ph / 50 Hz, 20 A nominal current
Air volume
12,499–16,000 m³/h
ambient temperature
-10°C to +40°C
Max Flow Rate Ls
6.73 l/s
Height (m)
2.25
m
Length (m)
2.7
m
Width (m)
1.23
m
Weight (kg)
1300
kg
Information to be used as a guide, full specification data please contact us
Features
Housed in a canopy frame with forklift and overhead lifting points for easy transport.
Equipped with 2 electronically commutated fans, copper/aluminium coil, 3-way valve, and filters.
CPCO mini controller for fan speed control and reliable performance.
Compatible with 2 × 500 mm diameter air ducts (inlet and outlet).
Designed for heating and cooling applications with turbo mode capability.
Benefits
High-performance air handling for commercial and industrial environments.
Fans built for high energy efficiency and precise control.
Flexible operation across a wide temperature range (-10°C to +60°C air output).
Efficient heating and cooling with turbo mode delivering up to 270 kW heating and 200 kW cooling.
Compact and mobile design simplifies deployment and setup.
Reliable control and monitoring with advanced integrated controller.
