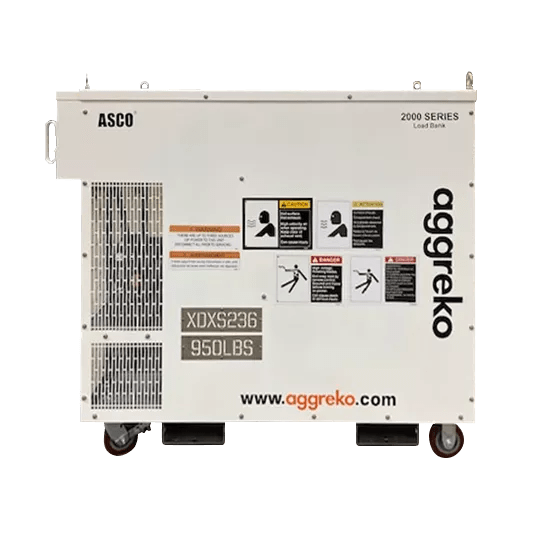

500 kW Resistive Load Bank

The 500 kW Resistive Load Bank is a compact, mobile unit designed for high-performance. It features remote and touch screen control via Sigma LT, allowing up to 25 units to be networked and managed individually or collectively. Built for flexibility, it includes wireless control options and is easily manoeuvrable with a compact footprint. Ideal for datacentre commissioning applications and demanding testing environments.

500 kW Resistive Load Bank

Rating

347 kW @ 400 V / 50 Hz, 500 kW @ 480 V / 60 Hz

Connections

2 × 400 A PowerLock per phase, 1 × Earth

Noise level

90 dBA @ 3 m

Air Flow

6.7 m³/s

Maximum Ambient Temperature

50 °C

Length (m)

1.55

m

Width (m)

0.857

m

Height (m)

1.34

m

Weight (kg)

431

kg

Features

  • Mounted on wheels/castors for mobility.
  • Remote control capability via Sigma LT system.
  • Touch screen hand-held controller can connect up to 25 units.
  • Network multiple load banks for synchronised control.
  • Individual unit control within the network.
  • 1 kW load step resolution for precise testing.
  • USB datalogging for performance tracking and analysis.
  • Wireless control option available.
  • CE Marked and TÜV Certified for safety and compliance.

Benefits

  • Highly portable and easy to deploy in various environments.
  • Centralised control of multiple units simplifies complex load testing.
  • Flexible operation with both group and individual control modes.
  • Fine load adjustment supports detailed performance testing.
  • Data logging enhances traceability and reporting.
  • Suitable for both indoor and outdoor use.
