How Do Cooling Towers Work with Chillers?

Introduction

In industrial and commercial environments, maintaining optimal temperatures ensures equipment reliability, process efficiency and occupant comfort. Facilities such as data centres, manufacturing plants, hospitals and office complexes all rely on robust cooling systems to keep operations running smoothly. At the heart of many of these systems are chillers and cooling towers – two components that work together to reject unwanted heat from buildings or processes.

But how do cooling towers and chillers work together, and why is their relationship so important? Understanding how a chiller works with a cooling tower is essential for facility managers, HVAC engineers and plant operators who want to optimise performance, reduce energy consumption and extend equipment lifespan.
In this guide, we’ll explain how each system operates and how they integrate into a unified, efficient cooling solution.

What is a Chiller?

A chiller is a key component in many industrial cooling systems. Its primary function is to remove heat from a building, process or equipment by circulating a chiller fluid, typically water or a water/glycol mixture, through a closed-loop system. The heat absorbed by this fluid is then expelled to the environment, ensuring temperatures remain controlled and stable.

There are two main types of chillers:

Air-cooled chillers dissipate heat directly into the ambient air using fans and coils
Water-cooled chillers transfer heat into a secondary water loop, which is then dissipated by an air-cooled chiller or cooling tower, making them highly effective for larger-scale or high-demand applications.

For more insight into fluid choices, see our guide on why glycol is used in chillers.

What is a Cooling Tower?

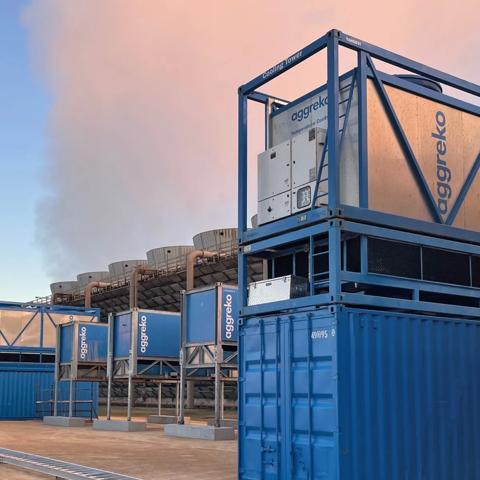

A cooling tower is a heat rejection device used in HVAC systems to remove excess heat from water that has absorbed energy during a cooling process. It plays a vital role in water-cooled chiller systems by cooling the water that circulates through the chiller’s condenser, enabling the system to operate efficiently.

The basic operation of a cooling tower relies on the principle of evaporative cooling. Warm water from the chiller’s condenser enters the cooling tower and is distributed over fill media to increase surface area. Air is then drawn or forced through the tower, causing a small portion of the water to evaporate. Some of the water evaporates, absorbing heat, and cools the remaining water, which is then recirculated.

Types of Cooling Towers

Cooling towers come in several configurations, some examples are listed below:

Open-circuit (wet) cooling towers: these systems allow direct contact between air and water, enabling heat transfer primarily through evaporation. They are widely used in industrial and HVAC applications due to their high cooling efficiency.
Closed-circuit (dry of fluid) cooling towers: the process fluid circulates through a closed coil. Heat is removed by air flow and/or water sprayed over the coil, with evaporation assisting in cooling. These systems reduce contamination risk but may be less efficient than open-circuit towers, especially in dry mode.

Cooling towers are also classified by airflow method:

Mechanical draft towers use fans to force or draw air through the tower.
Natural draft towers rely on natural convection and are generally used in large-scale power plants,

Together with chillers, cooling towers maintain stable temperatures in mission-critical environments.

How Do Chillers and Cooling Towers Work Together?

In a water-cooled cooling system, chillers and cooling towers operate as an integrated unit to efficiently manage heat. While each plays a role, their combined function is what enables reliable temperature control in demanding settings.

Loading component...

The chiller circulates chilled water (or a glycol mix) through a system of pipes to absorb heat from a building, industrial process or equipment This heat warms the chilled fluid as it returns to the chiller.

Inside the chiller, heat from the returning fluid is transferred to a separate condenser water loop. This step is crucial as it allows the system to isolate the chilled water from the heat rejection process.

The warmed condenser water is pumped out of the chiller and sent to the cooling tower. This loop is specifically designed to handle high-temperature water and deliver it for rejection.

Once inside the cooling tower, the heated water is distributed over the fill media and exposed to airflow. Through evaporation and air movement, the heat is expelled into the atmosphere, and the cooled water is collected and recirculated back to the chiller.

Loading component...

Why System Balance Matters

For this cycle to operate efficiently, the chiller and cooling tower must be properly sized, synchronised and maintained. If the cooling tower can’t reject heat quickly enough, the chiller’s performance will suffer, leading to higher energy consumption, potential shutdowns and shortened equipment lifespan.

This partnership is the backbone of large-scale cooling infrastructure. Understanding how a chiller and cooling tower work together helps facilities run more reliably and cost-effectively.

System Efficiency and Integration

For a chiller and cooling tower system to operate at peak performance, tight integration and system-level synchronisation are essential. When both components are properly matched and managed, facilities benefit from improved energy efficiency, lower operating costs and enhanced equipment longevity.

Why Synchronisation Matters

Chillers and cooling towers are interdependent. If one component underperforms, the entire system suffers. For example, if a cooling tower isn’t rejecting heat effectively, the chiller must work hard to compensate, drawing more power and increasing wear on internal components. Conversely, if the chiller is oversized or improperly controlled, it may short-cycle or waste energy.

A balanced system ensures that:

The cooling tower can handle the heat load produced by the chiller
Water flow rates and temperatures remain within design parameters
Energy use is optimised across both devices

Controls and Automation

Modern control systems manage this balance. Integrated building management systems (BMS) or dedicated chiller plant controls monitor variables like water temperature, flow rate and ambient conditions. These systems can:

Adjust fan speeds in cooling towers
Optimise chiller load based on demand
Coordinate pump operation to minimise energy use

By automating these processes, facilities reduce human error, improve responsiveness and maximise efficiency throughout the cooling cycle.

Common Issues That Undermine Efficiency

Even the most advanced system can underperform if key issues are overlooked. Some of the most common problems include:

Undersized cooling towers: a tower that can’t keep up with heat rejection will limit chiller capacity and lead to overheating.
Poor water treatment: fouling, scaling and biological growth in pipes and cooling tower fill reduce heat transfer efficiency and damage equipment.
Lack of preventative maintenance: clogged strainers, misaligned fans and neglected sensors can all compromise performance.

By addressing these challenges, operators can ensure their chiller and cooling tower systems run efficiently, safely and reliably under all conditions.

Loading component...

Applications and Use Cases

Chiller and cooling tower systems are essential in environments where precise, reliable and large-scale cooling is critical. Their ability to manage significant heat loads makes them the preferred solution across a wide range of industries.

Data Centre listing image_webasset_DataCentre_EUR_Aug25 - 1600x938

Data Centres

With servers generating constant heat, data centres depend on highly efficient cooling systems to maintain optimal operating temperatures. Water-cooled chillers paired with cooling towers provide the scalability and redundancy for 24/7 uptime.

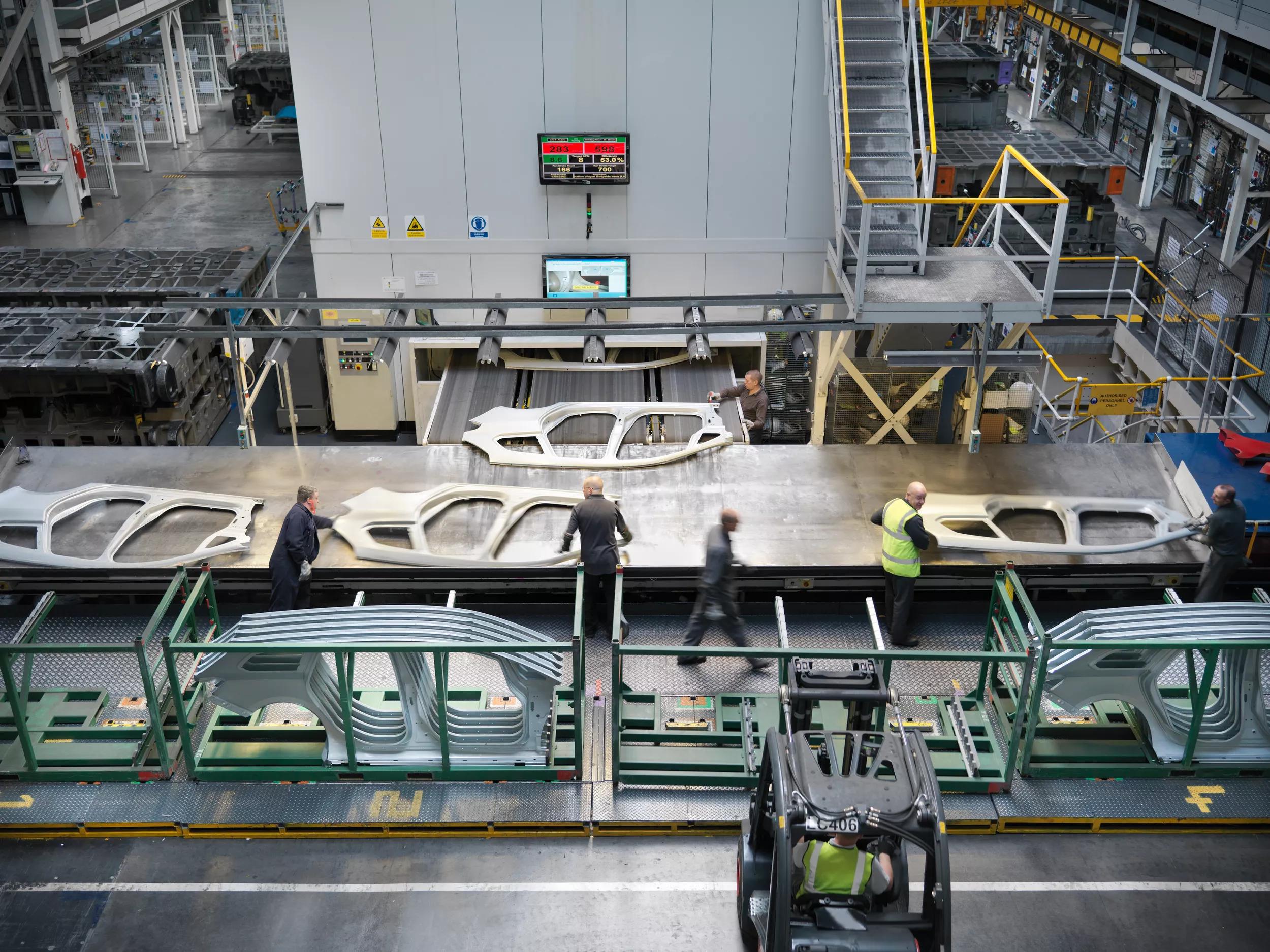

Manufacturing and Industrial Facilities

From plastics and metalworking to food processing and chemical production, manufacturing environments generate substantial process heat. Chiller and cooling tower systems help maintain thermal stability, protect equipment and improve product quality.

Loading component...

Hospitals and Healthcare Facilities

Temperature-sensitive environments like operating theatres, laboratories and MRI suites require dependable cooling. Water-cooled systems are favoured in hospitals due to their quiet operation, energy efficiency and ability to support mission-critical systems.

Loading component...

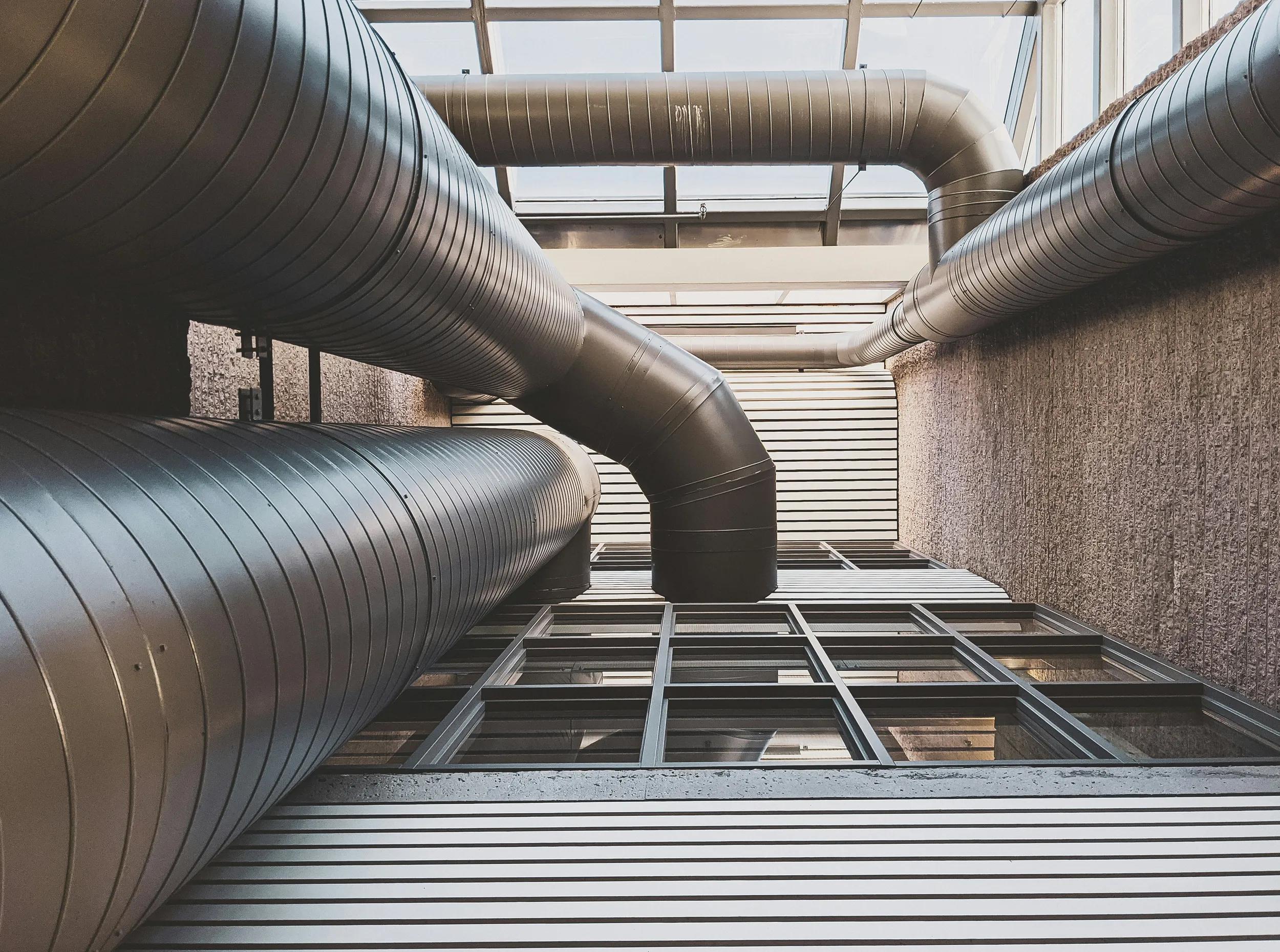

Commercial Buildings and HVAC Systems

Large office buildings, shopping centres and hotels use centralised chiller plants with cooling towers to deliver comfort cooling across multiple floors. These systems offer better energy performance and control compared to decentralised HVAC units.

Loading component...

Maintenance and Best Practices

To keep a chiller and cooling tower system running safely and efficiently, routine maintenance is essential. These systems operate under demanding conditions and rely on clean heat exchange surfaces, balanced water chemistry and reliable mechanical components to perform as designed.

Neglecting maintenance can lead to:

Reduced cooling capacity
Increased energy consumption
Equipment failure or unplanned downtime
Costly repairs and shortened system lifespan

A proactive maintenance strategy not only protects your investment but also ensures compliance with health and safety standards, particularly in environments like hospitals or food production, where temperature control is vital.

Both chillers and cooling towers have distinct maintenance needs, but several focus areas are critical across the system:

Water quality: poor water chemistry leads to scaling, corrosion and biological fouling, all of which reduce heat transfer efficiency. Regular testing and treatment of the chilled and condenser water loops are vital.
Airflow and fill media: for cooling towers, unrestricted airflow is essential. Inspect and clean fan blades, louvres and drift eliminators. Check the fill media for signs of scaling or blockages that may reduce performance.
Condenser and heat exchange surfaces: chiller condensers should be inspected and cleaned to remove any sediment or fouling that could impair heat rejection. Tube cleaning and descaling should be scheduled based on water quality and operating conditions.

Seasonal Considerations

Startup procedures: before warmer seasons begin, conduct a full inspection and test run the chiller and cooling tower. Verify electrical connections, fluid levels, sensor calibration and control settings.
Shutdown procedures: at the end of the cooling season, systems should be flushed, drained where appropriate and protected against freezing. Cooling towers should be cleaned and disinfected to prevent microbial growth such as Legionella.

Chillers and cooling towers are the backbone of many industrial and commercial cooling systems. While each serves a distinct function, their performance is tightly linked.

If you need temporary cooling support, whether for planned maintenance, seasonal demand or emergency response, we’re here to help. Aggreko offers scalable, fully integrated chiller and cooling tower rental solutions designed to keep your operations running – no matter the challenge.
