Introduction
Busy manufacturing plants, data centre operations and activities in other commercial and industrial environments all generate significant heat. If this heat isn’t managed effectively, it can lead to reduced efficiency, equipment damage and even operational shutdowns. The continued running of these systems and processes requires a solution for thermal regulation.
This is where cooling towers play a vital role. They are designed to remove waste heat from industrial processes, ensuring that critical equipment and environments remain at their ideal operating temperatures.
At Aggreko, we understand that effective temperature control is non-negotiable for our clients. We bring decades of expertise in delivering tailored, reliable solutions, including advanced cooling tower systems, to meet even the most demanding industrial requirements.
In this guide, we’ll explain how cooling towers work, including the core principles behind their efficiency and their diverse applications across various industries.
What is Evaporative Cooling?
At its core, a cooling tower works based on evaporative cooling. Think about stepping out of a swimming pool on a breezy day, or how sweating helps cool your body down. In both instances, as water evaporates from a surface, it draws thermal energy away with it, leaving the remaining surface feeling cooler.
This principle is more effective than relying on sensible heat transfer, where heat radiates directly from a hot object to a cooler one. While radiation and convection play a minor role, most heat rejection in a cooling tower occurs through the latent heat of vaporisation – the energy absorbed by water molecules as they transform from liquid to gas. This allows for significant heat removal with minimal water loss, making it an exceptionally efficient method for large-scale industrial applications.
A cooling tower is essentially a sophisticated system designed to maximise and control this natural evaporative process, leveraging specific components to achieve optimal heat rejection.
How Does a Cooling Tower Work?
To understand how the cooling tower works, let’s walk through the process step-by-step. While the exact configuration may vary between different types of cooling towers, the core operational sequence remains the same.
Step One: Hot Water Entering the Tower
The journey begins with hot water, laden with waste heat from your industrial process (e.g. a condenser, a chiller or process machinery), being pumped directly into the cooling tower. This is the water that needs its temperature reduced before it can be reused.
Step Two: Distribution System
Once inside the tower, this hot water isn’t simply dumped in. Instead, it’s distributed evenly over a specialised material called fill media. This fill media, often made from PVC or other materials, is designed to maximise the surface area of the water and create a thin film, allowing for optimal contact between the water and the air.
Step Three: Air Movement
Simultaneously, powerful fans (either axial or centrifugal, depending on the tower design) are at work. These fans either draw (induced draft) or push (forced draft) large volumes of ambient air through the fill media. This air movement can either be in the opposite direction of the water flow (counter-flow) or perpendicular to it (crossflow), both designed to optimise the evaporative process.
Step Four: Evaporation and Heat Transfer
As the warm water cascades over the surface area of the fill media, creating thin films and droplets, it comes into intimate contact with the cooler, drier ambient air. A small fraction of this water then rapidly evaporates. Crucially, as it evaporates, it absorbs a significant amount of latent heat from the remaining bulk of the water. The hot, humid air, now carrying this rejected heat, is then discharged from the top of the cooling tower.
Step Five: Cooled Water Collection and Return
Most of the water, now significantly cooler due to the evaporation, collects in a cold-water basin at the bottom of the cooling tower. This cooled water, refreshed and ready, is then pumped back to your industrial process to absorb more heat, completing the continuous cooling cycle.
Step Six: Drift Eliminators
To minimise water loss and prevent water droplets from escaping with the exhaust air, cooling towers incorporate drift eliminators. These components are designed with specific baffling that changes the direction of the airflow multiple times, effectively capturing larger water droplets and returning them to the tower’s water stream.
Step Seven: Make-Up Water
Because a small amount of water is lost through evaporation, drift and a controlled discharge called blowdown (to prevent mineral buildup), make-up water is continuously added to the cooling tower basin. This ensures the water level remains consistent and the system continues to operate efficiently.

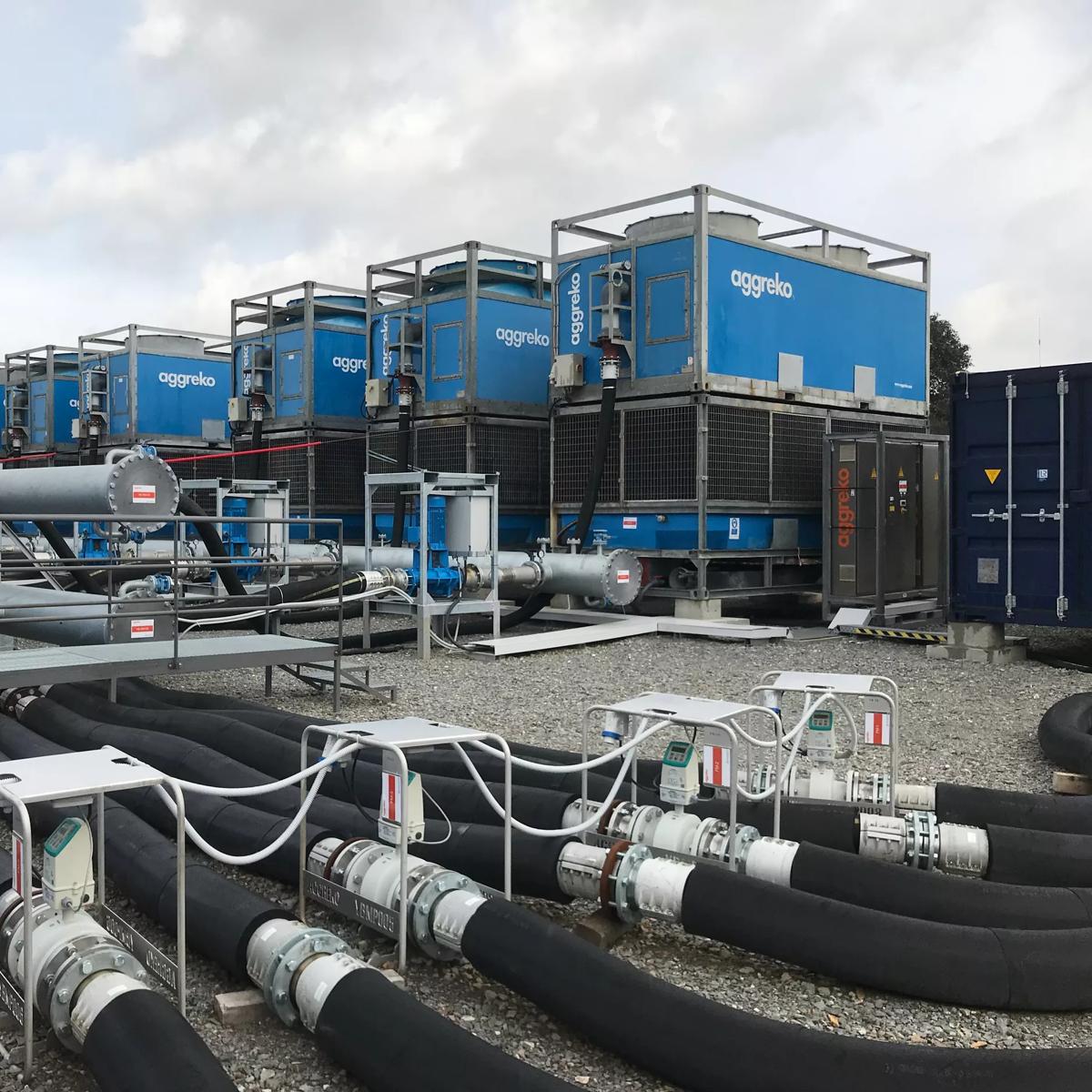

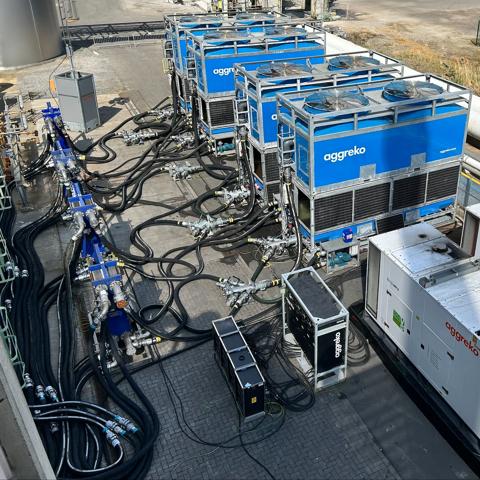

Types of Cooling Towers
While the fundamental principle of evaporative cooling remains constant, cooling towers come in various configurations, each designed to optimise performance for specific applications and spatial requirements.
The primary difference often lies in how air and water interact. For instance, forced draft cooling towers use fans to push air into the tower, while induced draft cooling towers pull air out, typically leading to more uniform airflow. Within these, water and air can flow in a counterflow arrangement (often more efficient for heat transfer) or a crossflow design (which can offer easier maintenance). Each type offers unique advantages in terms of footprint, energy consumption and noise levels.
The Application of Cooling Towers
The versatility and efficiency of evaporative cooling mean that the application of cooling tower technology is incredibly diverse, touching almost every major industrial and commercial sector. These essential systems are behind countless operations, ensuring continuity and optimal performance by effectively managing waste heat.
Here are just a few key industries where cooling towers are indispensable:

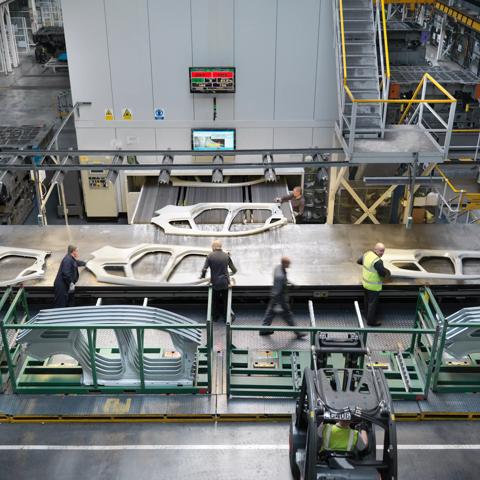

Manufacturing and Industrial Processes
From the production of plastics and chemicals to the intricate processes in steel mills and automotive plants, cooling towers remove the heat generated by machinery, ensuring consistent product quality and preventing equipment overheating.
Large Commercial Buildings and Data Centres
Keeping modern skyscrapers comfortable and data centres operational requires massive cooling capacity. Cooling towers are central to the chillers that provide air conditioning, maintaining stable internal environments for human comfort and sensitive electronic equipment.
Power Generation

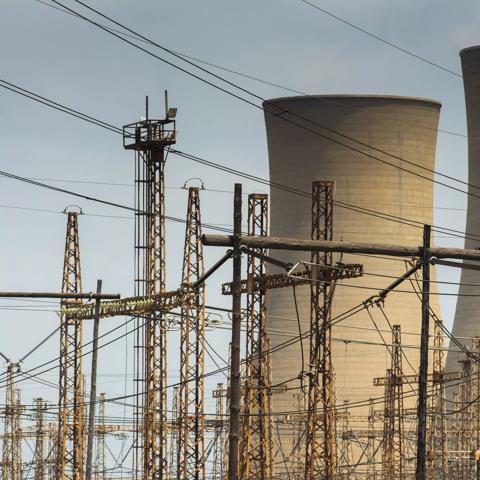

Thermal power plants, whether fossil fuel-based or nuclear, rely heavily on cooling towers to condense steam from their turbines back into water. This is a critical step for maximising efficiency and maintaining the continuous power cycle.

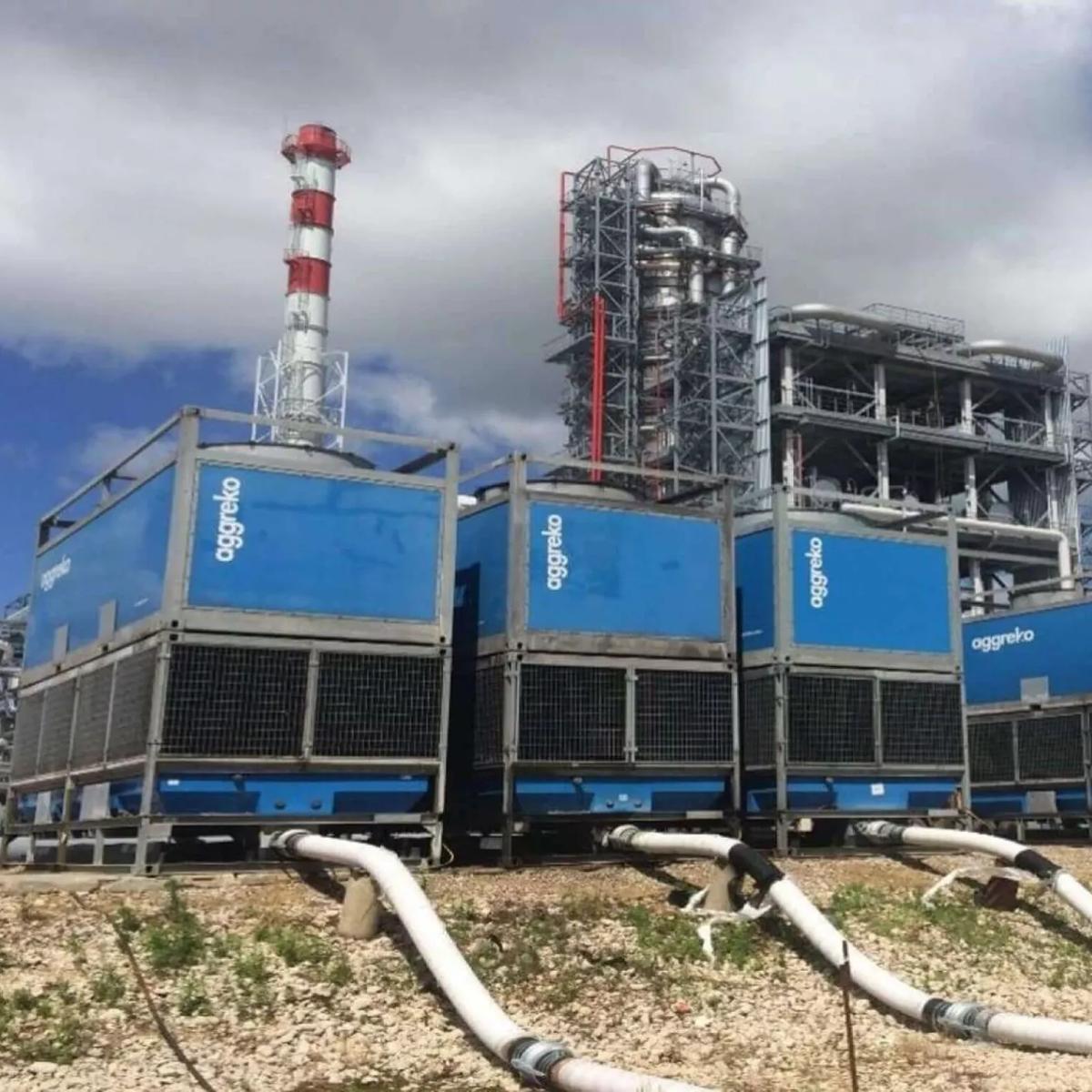

Oil & Gas Refineries
Cooling towers are vital for managing temperatures in condensers, heat exchangers and other processing units, ensuring safety and efficiency.

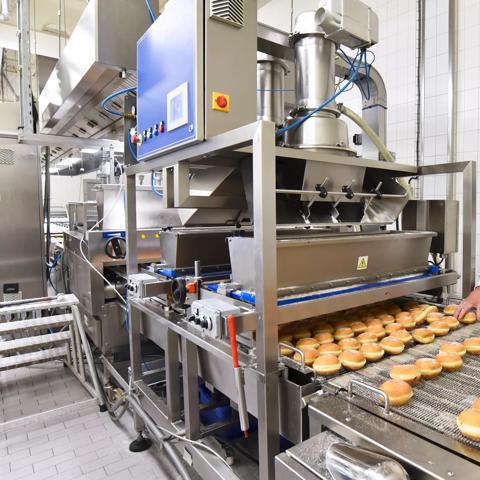

Food & Beverage Production
From breweries and distilleries to dairy processing plants, temperature control is important for product quality and safety. Cooling towers are used to chill products, control fermentation temperatures, and manage heat from refrigeration systems.
By efficiently rejecting heat, cooling towers allow these industries to reliably, maintain stringent quality standards, and often, pursue more sustainable practices by reusing process water rather than constantly drawing fresh supplies. Without them, many of the products and services we rely on would not be possible.
The Aggreko Advantage

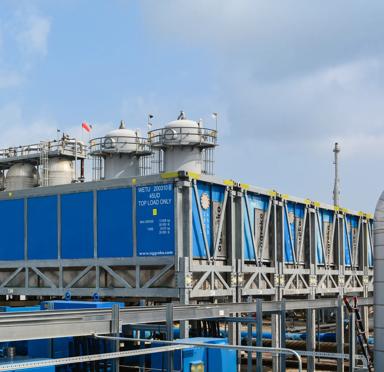

Understanding how cooling towers work is one thing; reliably implementing and managing them in real-world industrial environments is another. This is where Aggreko’s expertise truly shines. As a global leader in providing temporary and bespoke temperature control solutions, we ensure your operations run smoothly, no matter the challenge.
We know that for many of our clients, failure simply isn’t an option. Our expertise and proactive approach ensure your operations remain consistently cool, productive and resilient.
Get in touch with our experts today to discuss how Aggreko can help you achieve temperature control and operational efficiency.
