Guide to Sizing a Plate and Frame Heat Exchanger

Introduction

Plate and frame heat exchangers are important for transferring heat efficiently between two fluids. Sizing a heat exchanger correctly is essential for optimising energy use - it reduces costs and ensures better overall system efficiency.

Whether you’re designing a new system or upgrading an existing one, understanding how to size a plate and frame heat exchanger is key to getting the most out of your investment.

What is a Plate and Frame Heat Exchanger?

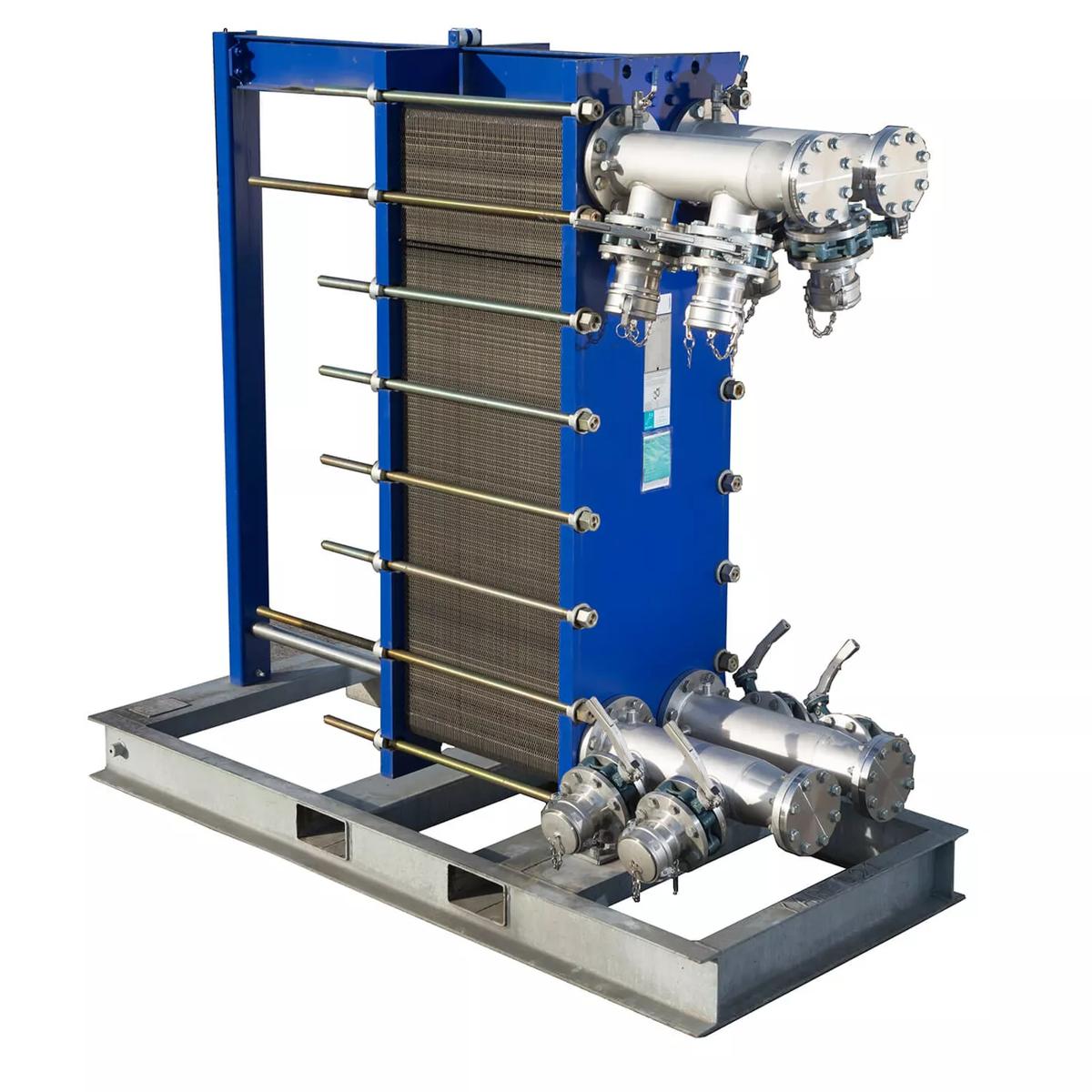

Plate and frame heat exchangers are popular in many industries for their efficient heat transfer capabilities. These exchangers consist of metal plates that allow hot and cold fluids to pass through alternative channels, facilitating the heat transfer from one fluid to another. Their compact design and ability to handle high heat loads make them suitable for many applications, from industrial processes to HVAC systems.

Read about other types of heat exchangers in our dedicated guide.

Key Factors in Heat Exchanger Sizing

Heat exchanger sizing refers to determining the correct dimensions and design parameters of the heat exchanger to meet the thermal requirements of the specific application. A properly sized plate and frame heat exchanger ensures heat is transferred effectively, avoiding underperformance or excessive energy consumption.

Choosing the right size involves understanding the heat load, fluid flow rates, temperature differences, and system constraints:

Flow Rate (Cold and Hot Fluids)

The flow rate of the hot and cold fluids is crucial in determining the heat transfer capacity. If the flow rate is too low, heat may not transfer efficiently. Conversely, if it’s too high, you could end up with unnecessary energy costs or even damage the system. Calculating the right flow rate for both fluids is essential to achieving the desired temperature change.

Temperature Difference

The temperature difference between the two fluids, in terms of inlet and outlet temperatures, directly influences the amount of heat that can be transferred. A larger difference means more heat is exchanged. However, this can lead to higher energy consumption if not managed carefully.

Heat Load

The heat load represents the heat transferred from the hot fluid to the cold fluid. This is directly tied to the application’s needs, such as how much cooling/heating is required.

Material Compatibility

Plate heat exchangers are typically made from materials like stainless steel, titanium or various alloys. It’s important to consider the material compatibility with the fluids in the system to avoid corrosion or damage.

Pressure Drop

The pressure drop is the resistance to flow that occurs as the fluids pass through the heat exchanger. A high-pressure drop can lead to inefficiencies and additional energy costs, so balancing this with the heat transfer capacity is key for an efficient system.

How to Size a Plate Heat Exchanger

Here’s a simple guide to sizing a plate heat exchanger:

  1. Determine the heat load

    Start by calculating the total heat load - the amount of heat that needs to be transferred.

  2. Calculate the required heat transfer area

    Once you have the heat load, calculate the heat transfer area needed to achieve the desired temperature change.

  3. Select the number of plates

    The heat transfer area calculation will give you the surface area required for the heat exchange process. Next, you’ll need to determine the number of plates that will make up the heat exchanger. The plate dimensions are typically standard, so you can simply divide the required heat transfer area by the area of a single plate.

  4. Check flow configuration

    Heat exchangers can operate in different flow configurations (e.g. counterflow, parallel flow or multi-pass). Counterflow configurations are the most efficient as they provide the maximum temperature difference between the fluids, so they should be prioritised when sizing. Make sure to check the flow type to ensure optimal performance.

  5. Factor in the pressure drop
    As you calculate the number of plates and the configuration, you also need to account for the pressure drop across the heat exchanger. This affects the pump power required to circulate the fluids and can impact system efficiency. Keep the pressure drop within acceptable limits to avoid overloading the pump or excessive energy consumption.

What Size Heat Exchanger Do I Need?

Here’s what you need to consider when determining the right size heat exchanger:

  1. Assess your heat load requirements

    Work out how much heat needs to be transferred between the fluids. The larger the heat load, the larger the heat exchanger you’ll require.

  2. Consider your space and budget

    Your choice of heat exchanger may be limited to available space or budget constraints. Balance your technical needs with the practical factors like upfront hire costs and installation requirements.

  3. Understand the fluid properties

    Fluids have different thermal properties, which can affect the heat transfer efficiency. For example, if your system uses a highly viscous fluid, it may require a larger heat exchanger to achieve the same level of heat transfer as a lower-viscosity fluid.

  4. Think about efficiency and maintenance

    Larger heat exchangers can offer better performance, but they might also come with higher maintenance costs over time. Opting for an appropriately sized unit that balances performance with ease of maintenance is often the smartest choice for long-term efficiency.

  5. Prioritise flexibility
    If your application requires frequent changes in flow rates or temperature (for example, in seasonal operations), consider a heat exchanger that offers flexibility in scalability. Some systems allow for the addition of extra plates or modifications to accommodate changes in requirements over time.

By considering factors like heat load, flow rates, temperature differences, material compatibility and pressure drop, you can make an informed decision on the right heat exchanger size. If you’re ever in doubt, don’t hesitate to consult with our experts to ensure your system is properly designed for maximum efficiency.
