Water-cooled chiller hire

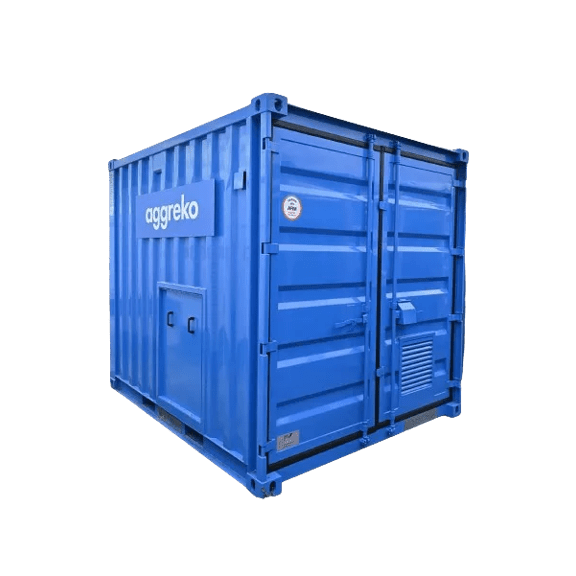

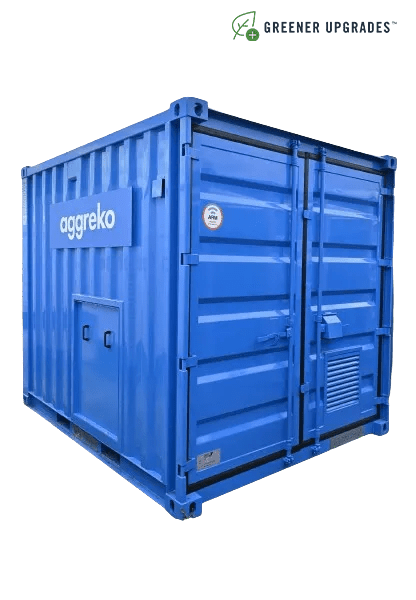

550 kW Very Low Temperature Chiller
The new VLTC550 offers a combination of environmental sustainability, high cooling capacity, versatility in applications, and operational flexibility, making it suitable for projects with strict sustainability agendas and diverse cooling requirements.
Water-cooled chiller hire
550 kW Very Low Temperature Chiller
The new VLTC550 offers a combination of environmental sustainability, high cooling capacity, versatility in applications, and operational flexibility, making it suitable for projects with strict sustainability agendas and diverse cooling requirements.
Features
- Natural refrigerant: runs on R744 (CO₂), which is a natural refrigerant.
- Environmentally friendly: suitable for environmentally sensitive projects, with a GWP (Global Warming Potential) of 1 for the CO₂ refrigerant.
- Exceptional cooling ability: delivers 217 kW at -40°C, showcasing a high cooling capacity.
- High-duty cooling for a condensed footprint, maximising efficiency.
- Stainless steel cold fluid side: equipped with a stainless steel side to handle a wide range of thermal fluidisers.
- Low noise operation: operates with minimal noise, making it suitable for sensitive environments.
- LCD display: features an LCD display providing information on operating parameters.
- Two-stage system: designed to operate in a two-stage system, requiring the condenser to be cooled by a standard WCC (Water-Cooled Chiller).
- Unique in the rental market: due to a combination of high efficiency and running on natural refrigerant.
Benefits
- Sustainability: uses natural refrigerant (CO₂) with a low GWP, minimising environmental impact.
- Wide temperature range: designed to meet cooling requirements in the -10°C to -40°C temperature range.
- Versatile applications: ideal for temporary cold storage and freezer applications where maintaining very low temperatures is crucial.
- Flexible cooling options: can be used with chillers for an air-cooled system or with a cooling tower for condenser cooling, providing flexibility in application.
ambient temperature
-15°C to +40°C.
Max Leaving Fluid Temp (°C)
-10
°C
Min Leaving Fluid Temp (°C)
-40
°C
Power supply
Available in both 400V / 3 Phase / 50Hz and 460V.
Height (m)
2.591
m
Length (m)
2.991
m
Weight (kg)
4200
kg
Width (m)
2.438
m
Information to be used as a guide, full specification data please contact us.
