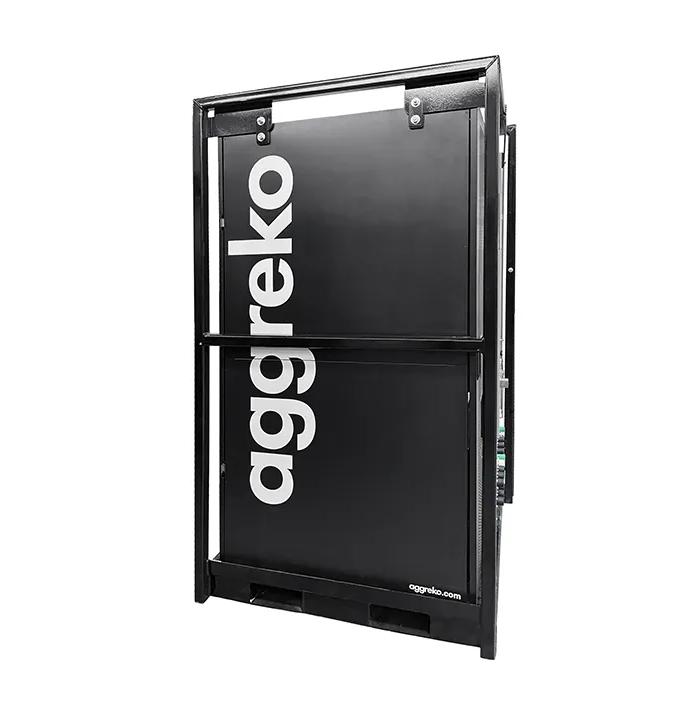

80 kW Uninterruptible Power Supply (UPS) System
Scalable, modular UPS for mission critical availability
Aggreko's modular, online double conversion 80 kW UPS protects critical data and equipment from power-related issues, while supplying clean and reliable network grade power.
The 80 kW UPS can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. The power modules are independent and can be hot swapped without risk to the critical load.
Benefits
- Provides more real capacity for high density loads
- Modularity makes it easy to add modules and increase capacity when power or runtime requirements change
- Transfers critical load from UPS power to utility power with front mounted MBP switch
- 10-inch display provides operational data visibility, including status and alarms, enhancing reliability
- Provides maximum installation flexibility
Features
Unity output power factor
Scalable
Modular static switch
Maintenance bypass
Large touchscreen LCD display
Dual or single utility input
Key Data |
|
| Delivered power | 80 kVA / 80 kW |
| Energy capacity | 80 kVA / 80 kW |
| AC voltage allowable range | 208 / 120V, 50 / 60 Hz auto-sensing |
| AC INPUT voltage range | 121–253 VAC* (L-L), 40-70 Hz |
| AC OUTPUT voltage – 60HZ | 208 / 120V |
Physical Data |
|
| Length | 1.10 m |
| Width | 0.60 m |
| Height | 2.01 m |
| Weight (Gross) | 297.8 kg |
Output (When External Source Available) |
|
| Maximum load (all phases) before generator start command (kW) | Configurable based on application |
Output (Stand-Alone) |
|
| Standby rating | 80 kW |
Battery Systems |
|
| Nominal voltage | ± 120V |
| Charge current | 32A |
Internal Battery Runtimes
System load (kVA): 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80
16 battery modules: 169, 85, 52, 37, 28, 23, 19, 16, 16, 12, 16, 9, 8, 7.5, 7, 6

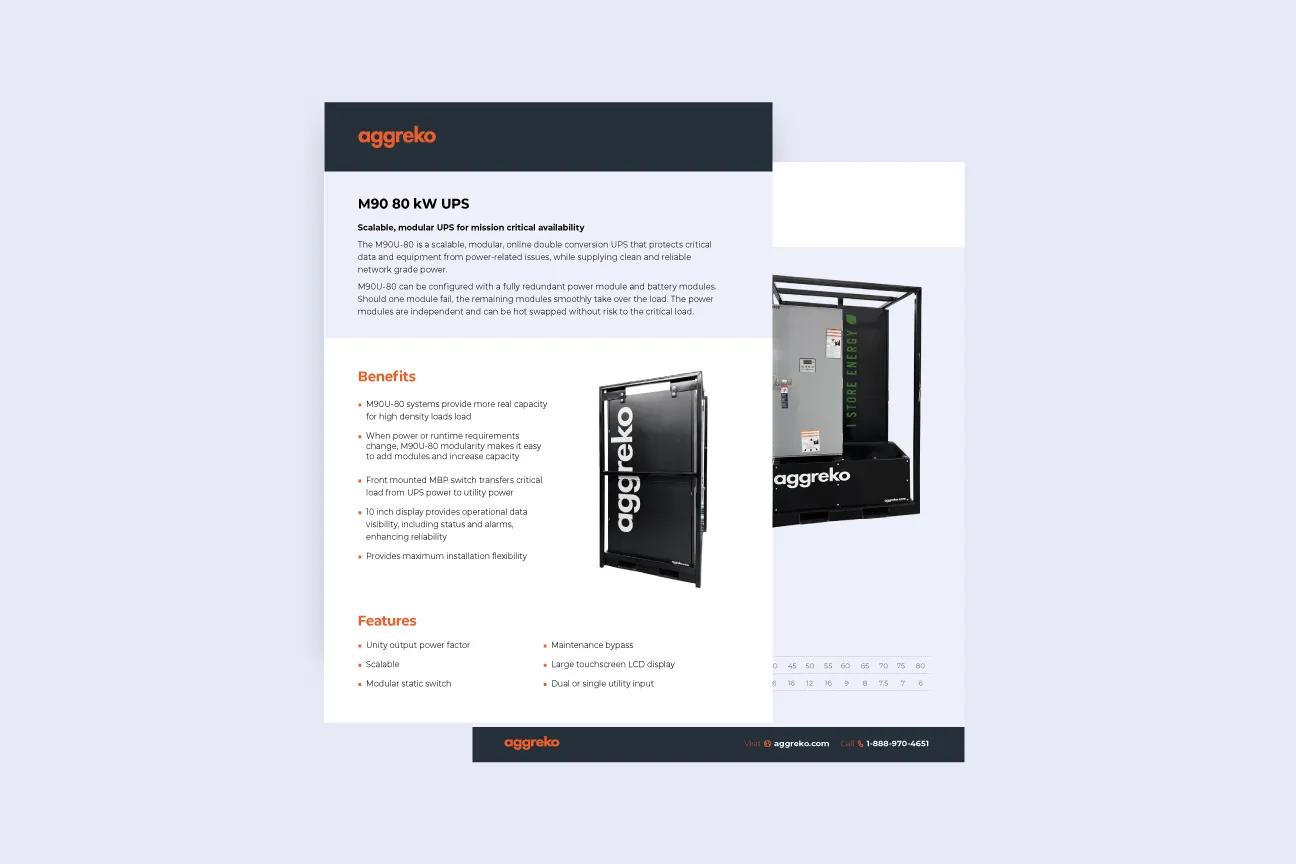

Explore our Scalable UPS Solutions
Discover how Aggreko's modular, scalable UPS systems provide critical power protection for high-density loads. Ideal for mission-critical environments, these systems offer real-time operational data, modular expandability, and maximum installation flexibility.
