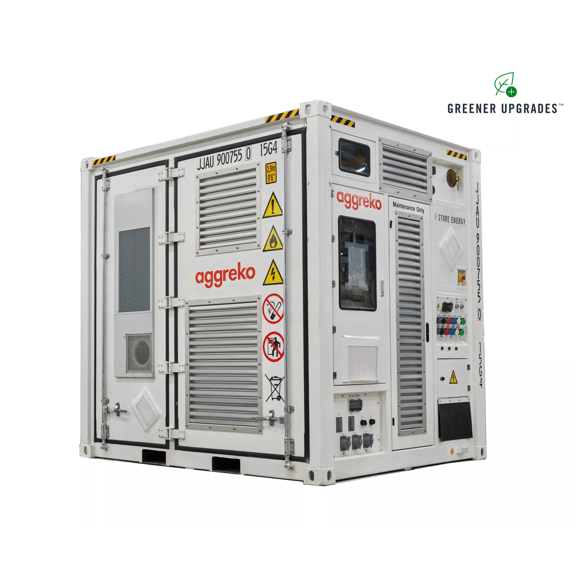

500 kW Battery
A flexible mid-node battery energy storage system (BESS) with rapid deployment and remote monitoring
Our 500 kW/250 kWh battery solutions are backed by engineering expertise to help reduce emissions, fuel consumption, and costs.
Built for rapid deployment, our 500 kW capacity batteries are a fast way to increase your efficiency, on or off the grid. Packaged with everything you need – from fire protection to HVAC – they’re an effective way to store and reuse energy, increasing your flexibility while reducing fuel consumption. Whether you’re dealing with variable loads, consumption that outpaces the grid, or noise issues with generators, these 500-kilowatt units can help.
Our 500 kW batteries can be deployed in island mode, in parallel with additional BESS, or as part of a hybrid solution, including generators.
| Delivered Power | 500 kW |
|---|---|
| Energy Capacity | 250 kWh (221 kWh usable) |
| AC Output, Voltage, Frequency | 500 kW, 480 V, 60 Hz |
| Certifications | UL 1741 SA, UL 9540, CSA 22.2, UN 3536, UN 38.3, IEEE 1547 |
| Length (ft) | 9.8 ft (2991 mm) |
|---|---|
| Width (ft) | 8 ft (2438 mm) |
| Height (ft) | 9.5 ft (2896 mm) |
| Weight (lbs.) | 23,149 lbs (10,500 kg) |
Benefits
- Reduce generator runtime, fuel consumption, and associated costs
- Store and provide energy with zero emissions
- Increase your flexibility and manage variable loads
- Optimize performance and reliability with 24/7 remote monitoring
- Deploy your 500 kW BESS fast with expert support
- Get everything you need in one container
Features
- Zero CO2 emissions and zero noise
- Wide operating temperature range
- Energy Conversion System including inverter and charger
- Low internal resistance and high efficiency
- ECO controller for intuitive control and monitoring
- Overload capability of ≤10% of nominal value (max. one min)
- Designed for maneuverability and transportation
- Emergency stop
- 24/7 Aggreko Remote Monitoring (ARM)
- UL 9540 and CSA 22.2 compliant
