AG-10 1,000 Ton Cooling Tower
Modular and Heavy Industrial Rental Cooling Towers

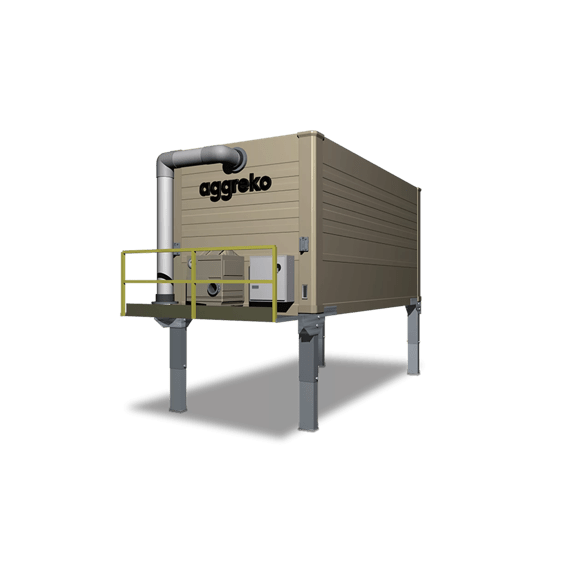

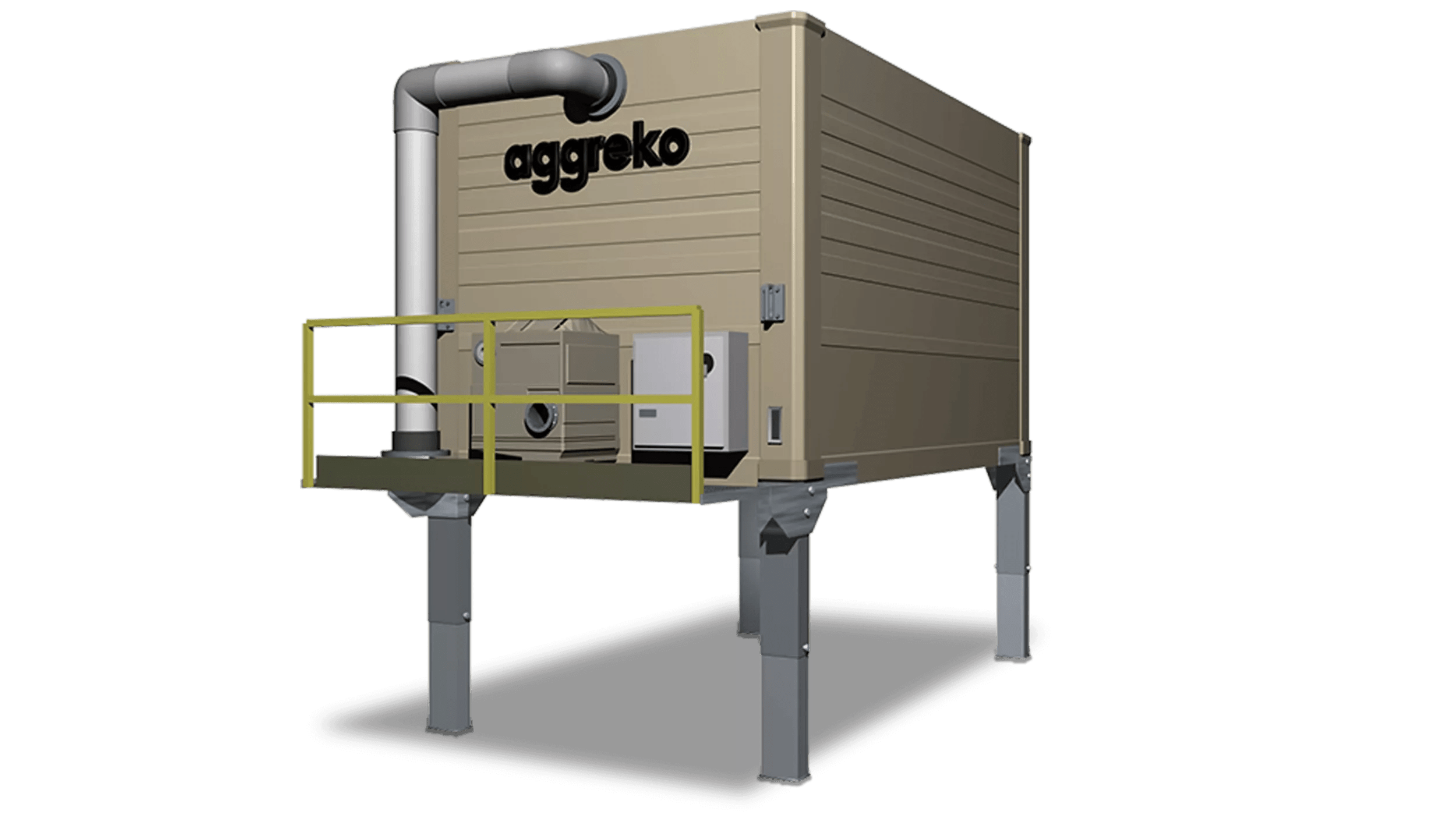

AG-10 1000 Ton Cooling Tower - The AG series cooling towers are modular units, known as the workhorse of the rental cooling tower industry. They can operate independently or be interconnected with multiple AG series towers to meet any heat load. Each AG series cooling tower features a folding substructure and an access platform. The permanently attached substructure reduces installation time and can be adjusted to either 5-foot or 8-foot elevations. The access platform on the temporary 1000-ton cooling tower acts as an elevated walkway to the external sump and control panel. The thermal performance of the GT series cooling towers is CTI Certified and available in both standard duty and HD versions for more demanding, dirty water applications.
Our temporary cooling towers are relied upon in a number of sectors, including construction, manufacturing, petrochemical & refining and food & beverage.
Available voltage: 480V three phase @ 60 Hz Full Load Amps: 125 amps Inlet Connection Size (Hot): 1 x 12" Flange Outlet Connection Size (Cold): 1 x 12" Flange Scalable Solutions: Interconnect multiple units effortlessly, ensuring flexibility for your cooling needs Forced Draft, Counterflow Design: Unique evaporative cooling design with multiple direct-drive fans Industrial & Commercial: Perfect for temporary cooling requirements, tower replacement, repair, emergency cooling, or wastewater cooling
Air Delivery Type
Forced Draft
Fan Motor Size
10 x 7.5 horsepower
Fan Speed Control
2 Speed
Full Load Amps
125 Amps
Inlet Connection Size hot
1 x 12" Flange
Make-up water connection
2" FNPT
Nominal Capacity
1000 tons
Nominal Water Flow
3000 GPM
Outlet Connection Size (cold)
1 x 12" Flange
Volts/Phase/Hz
480/3/60
Height (ft)
11-0"
Length (ft)
34-0"
Operating Weight
34560 lbs
Shipping Weight
22050 lbs
Substructure Height
5-0" / 8-0" / 14-0"
Width (ft)
12-0"
Features
- Modular Design
- Elevated Cold Water Basin
- External Sump
- Folding/Telescoping Substructure
- CTI Certification
Benefits
- Multiple units can be interconnected to form a single cooling tower capable of achieving any capacity
- The elevated cold water basin makes draining the cold water long distances without the need for additional pumps
- Sump screens and float valves are accessible external of the tower
- The substructure design makes installation safer and more efficient
- CTI Certification ensures users the thermal capacity capacity is properly represented
