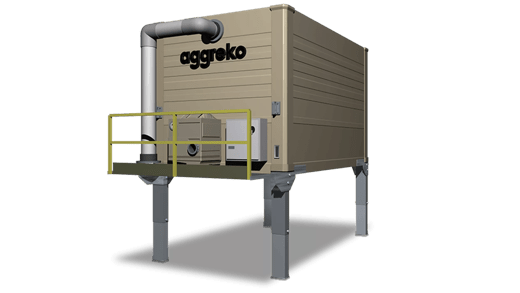

AG-6 600 Ton Cooling Tower
Modular and Heavy Industrial Rental Cooling Towers
AG-6 600 Ton Cooling Tower - The AG series cooling towers are a modualr cooling tower and are known as the workhorse of the rental cooling tower industry. They can be used independantly or interconnected with multiple AG series cooling towers to achieve any heat load. Each AG series cooling tower has a folding substructure and an access platform. The permanently attached substructure reduces installation time and can be adjusted to either 5 foot or 8 foot elevations. The access platform serves as an elevated walkway to the external sump and control panel. The thermal performance of the GT series cooling towers are CTI Certified and are available in both standard duty and also in the HD version for those dirty water applications.
Available voltage: 480V three phase @ 60 Hz Full Load Amps: 75 amps Inlet Connection Size (Hot): 1 x 12" Flange Outlet Connection Size (Cold): 1 x 12" Flange Scalable Solutions: Interconnect multiple units effortlessly, ensuring flexibility for your cooling needs Forced Draft, Counterflow Design: Unique evaporative cooling design with multiple direct-drive fans Industrial & Commercial: Perfect for temporary cooling requirements, tower replacement, repair, emergency cooling, or wastewater cooling
Air Delivery Type
Forced Draft
Fan Motor Size
6 x 7.5 horsepower
Fan Speed Control
Optional
Full Load Amps
75 Amps
Inlet Connection Size hot
1 x 12" Flange
Main Breaker (amps)
2" FNPT
Nominal Capacity
600 tons
Nominal Water Flow
1800 GPM
Outlet Connection Size (cold)
1 x 12" Flange
Volts/Phase/Hz
480/3/60
Height (ft)
11-0"
Length (ft)
22-0"
Operating Weight
23880 lbs
Shipping Weight
15000 lbs
Substructure Height
5-0" / 8-0" / 14-0"
Width (ft)
12-0"
Features
- Modular Design
- Elevated Cold Water Basin
- External Sump
- Folding/Telescoping Substructure
- CTI Certification
Benefits
- Multiple units can be interconnected to form a single cooling tower capable of achieving any capacity
- The elevated cold water basin makes draining the cold water long distances without the need for additional pumps
- Sump screens and float valves are accessible external of the tower
- The substructure design makes installation safer and more efficient
- CTI Certification ensures users the thermal capacity capacity is properly represented
