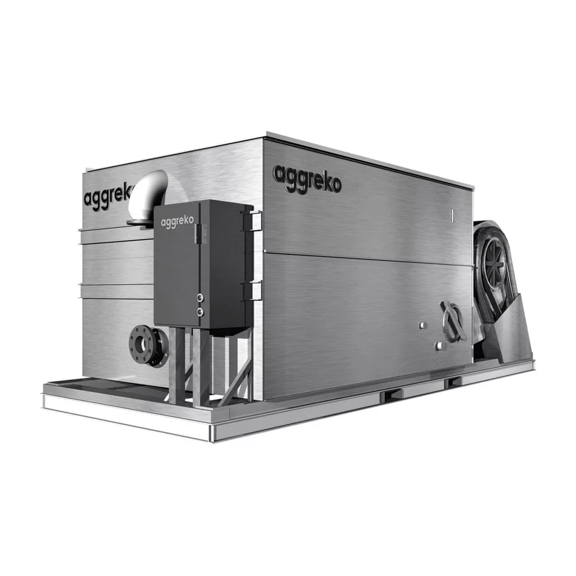

250 Ton Cooling Tower
For HVAC and light industrial applications. 250 Ton Cooling Tower This cooling tower offers a compact design that is skid mounted and is configured for ease of installation. With a single inlet, a single outlet, and a pre-wired motor control panel that includes a variable speed drive makes it ideally suited for HVAC and light industrial applications.
| Nominal Capacity | 250 tons |
|---|---|
| Nominal Water Flow | 750 GPM |
| Air Delivery Type | Forced Draft |
| Fan Motor Size | 40 horsepower |
| Fan Speed Control | Variable Speed |
| Full Load Amps | 46 Amps |
| Volts/Phase/Hz | 480/3/60 |
| Inlet Connection Size (hot) | 6" Flange |
| Outlet Connection Size (cold) | 6" Flange |
| Make-up water connection | 2" FNPT |
| Height (ft) | 7.25 |
|---|---|
| Width (ft) | 8.2 |
| Length (ft) | 20 |
| Shipping Weight | 5900 lbs |
| Operational weight | 7500 lbs |
Features
- Low Profile Design
- Variable Speed Fan Control
- Skid Mounted with Fork Pockets
- Single Inlet and Single Outlet
Benefits
- Easily transported for low cost and econmical delivery
- Precise temperature control and energy savings
- Can be set into place with a forkilift or remain on a trailer
- Installation is simple and requires minimal time to required to install
