1,000 Ton Cooling Tower
For HVAC and light industrial applications.

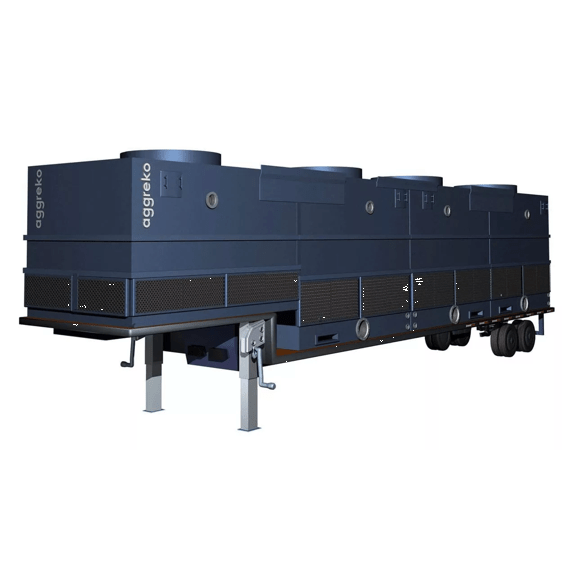

1000 Ton Cooling Tower - This trailer mounted (4) cell cooling tower has a nominal capacity of 1000 tons and is customized specifically for the rental industry. The (4) cell design complimented by a 2 speed fan motor offers simple and reliable means of temperature control. Its design makes it well suited for HVAC and light manufacturing applications by supplying cooling for water cooled chillers and heat exchangers.
| Nominal Capacity | 1000 tons |
|---|---|
| Nominal Water Flow | 3000 GPM |
| Air Delivery Type | Induced Draft |
| Fan Motor Size | 4 x 25 horsepower |
| Fan Speed Control | 2 Speed |
| Full Load Amps | 125 Amps |
| Volts/Phase/Hz | 480/3/60 |
| Inlet Connection Size (hot) | 4 x 6" Flange |
| Outlet Connection Size (cold) | 2 x 10" Flange |
| Make-up water connection | 2" FNPT |
| Height (ft) | 10.5" |
|---|---|
| Width (ft) | 8 |
| Length (ft) | 49.08" |
| Shipping Weight | 16740 lbs |
| Operating Weight | 31180 lbs |
Features
- Large capacity (1000 tons)
- Trailer mounted
- 4 fan, 2 Speed Fan Control
- 4 x 6" Inlets and Duel 10" Outlet Connections
Benefits
- Provides 15,000,000 btu/hr of cooling with a single cooling tower
- Easily transported and minimizes handling
- Temperature control and energy savings
- Installation is simple and requires minimal time to install
