500 Ton Cooling Tower

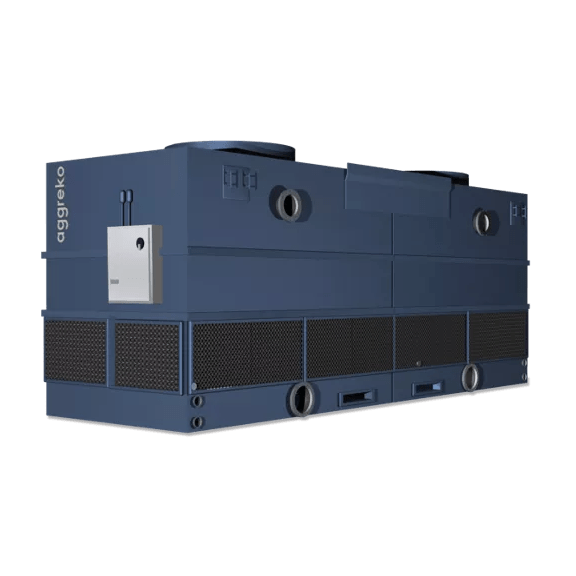

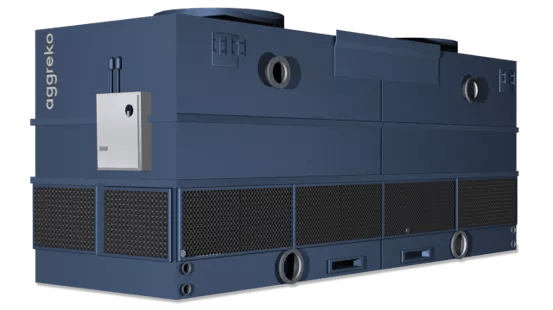

For HVAC and light industrial applications. 500 Ton Cooling Tower This (2) cell cooling tower has a nominal capacity of 500 tons and is customized specifically for the rental industry. The (2) cell design complimented by a 2 speed fan motor offers simple and relaible means of temperature control. Its design makes it well suited for HVAC and light manufacturing applications by supplying cooling for water cooled chillers and heat exchangers.

Nominal Capacity 500 tons
Nominal Water Flow 1500 GPM
Air Delivery Type Induced Draft
Fan Motor Size 2 x 25 horsepower
Fan Speed Control 2 Speed
Full Load Amps 64 Amps
Volts/Phase/Hz 480/3/60
Inlet Connection Size (hot) 2 x 6" Flange
Outlet Connection Size (cold) 2 x 10" Flange
Make-up water connection 2" FNPT
Height (ft) 10.5"
Width (ft) 8
Length (ft) 24
Shipping Weight 8370 lbs
Operational weight 8370 lbs


  • Low Profile Design
  • 2 fan, 2 Speed Fan Control
  • Fork Pockets and Top Lift Design
  • Duel Inlet and Duel Outlet Connections


  • Easily transported for low cost and econmical delivery
  • Precise temperature control and energy savings
  • Can be set into place with a forkilift or remain on a trailer
  • Installation is simple and requires minimal time to required to install
