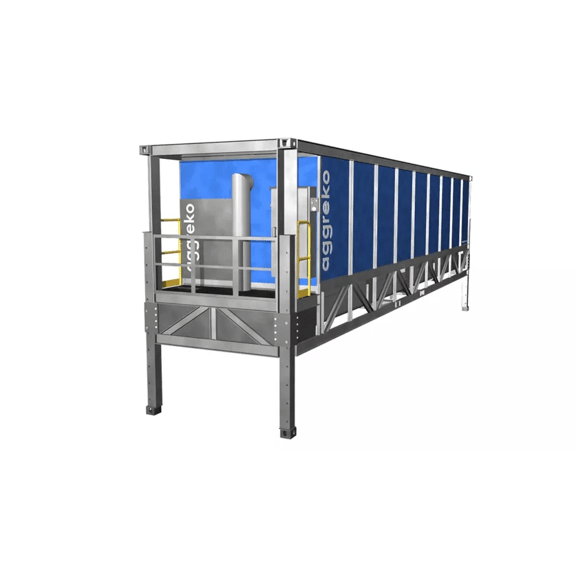

GT-40 600 Ton Cooling Tower

The GT series cooling towers represent the latest in cooling tower technology. These cooling towers were developed by Aggreko specifically for the global rental market. The GT-40 is a 600 ton cooling tower integrated into a shipping container frame. This provides for maximum transportation efficiency globally or domestically. This cooling tower is modular or can be used indepenantly on or off a trailer and has an adjustable substructure from 0 to 12 feet. The EC fan motors provide maximum energy efficiency and precise temperature control.

You won't find this anywhere else. Our GT Cooling Towers use a one-of-a-kind, patented container design that minimizes their installation footprint and maximizes on-site safety. Learn more here.

Nominal Capacity 600 tons
Nominal Water Flow 1800 GPM
Air Delivery Type Induced Draft
Fan Motor Size 18 x 1.33 HP
Full Load Amps 29 Amps
Volts/Phase/Hz 480/3/60
Fan Speed Control Variable Speed
Inlet Connection Size (hot) 1 x 12" Flange
Outlet Connection Size (cold) 2 x 12" Flange
Make-up water connection 2" FNPT
Height (ft) 9'-6"
Width (ft) 8'-0"
Length (ft) 40'-0"
Substructure Height 10" to 144"
Shipping Weight 30000 lbs
Operational weight 41000 lbs


  • Modular Design
  • Integrated Shipping Container Design
  • Variable Speed Fans
  • Telescoping Substructure
  • Touchscreen Controls
  • Remote Monitoring
  • Suitable for Hazardous Locations


  • Can be interconnected to achieve any cooling capacity requiring 25% less space
  • 40% reduction in domestic freight costs / 90% reduction in ocean transport costs
  • Reduces energy costs by 50% and maintains precise temperature control
  • Tower height adjustable to allow maximum drain capability and space for accessories
  • See real time water temperatures, water flow, fan speeds, power consumption, etc...
  • Peace of mind knowing that Aggreko is monitoring equipment status 24/7/365
  • With an optional air purge the GT-40 is suitible for use in Class 1, Division 2 locations
