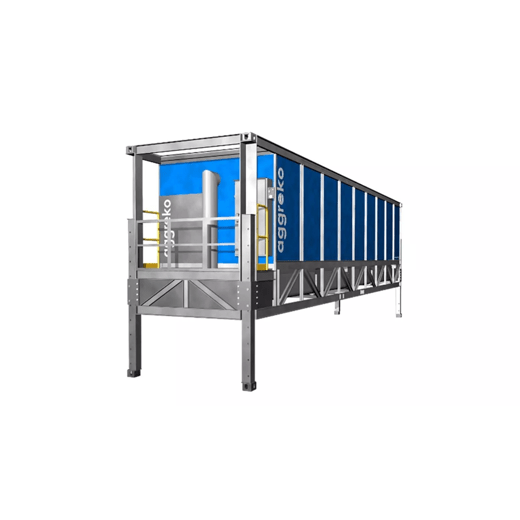

GT-20 200 Ton Cooling Tower
The GT series cooling towers represent the latest in cooling tower technology. These cooling towers were developed by Aggreko specifically for the global rental market. The GT-20 is a 200 ton cooling tower integrated into a shipping container frame. This provides for maximum transportation efficiency globally or domestically. This cooling tower is modular or can be used indepenantly on or off a trailer and has an adjustable substructure from 0 to 12 feet. The EC fan motors provide maximum energy efficiency and precise temperature control.
You won't find this anywhere else. Our GT Cooling Towers use a one-of-a-kind, patented container design that minimizes their installation footprint and maximizes on-site safety. Learn more here.
| Nominal Capacity | 200 tons |
|---|---|
| Nominal Water Flow | 600 GPM |
| Air Delivery Type | Induced Draft |
| Fan Motor Size | 8 x .65 HP |
| Full Load Amps | 5.1 Amps |
| Volts/Phase/Hz | 480/3/60 |
| Fan Speed Control | Variable Speed |
| Inlet Connection Size (hot) | 1 x 10" Flange |
| Outlet Connection Size (cold) | 2 x 10" Flange |
| Make-up water connection | 2" FNPT |
| Height (ft) | 9'-6" |
|---|---|
| Width (ft) | 8'-0" |
| Length (ft) | 20'-0" |
| Substructure Height | 10" to 144" |
| Shipping Weight | 13000 lbs |
| Operational weight | 13000 lbs |
Features
- Modular Design
- Integrated Shipping Container Design
- Variable Speed Fans
- Telescoping Substructure
- Touchscreen Controls
- Remote Monitoring
Benefits
- Can be interconnected to achieve any cooling capacity requiring 25% less space
- 40% reduction in domestic freight costs / 90% reduction in ocean transport costs
- Reduces energy costs by 50% and maintains precise temperature control
- Tower height adjustable to allow maximum drain capability
- See real time water temperatures, water flow, fan speeds, power consumption, etc...
- Peace of mind knowing that Aggreko is monitoring equipment status 24/7/365
