GT-40 800 Ton Cooling Tower Rental

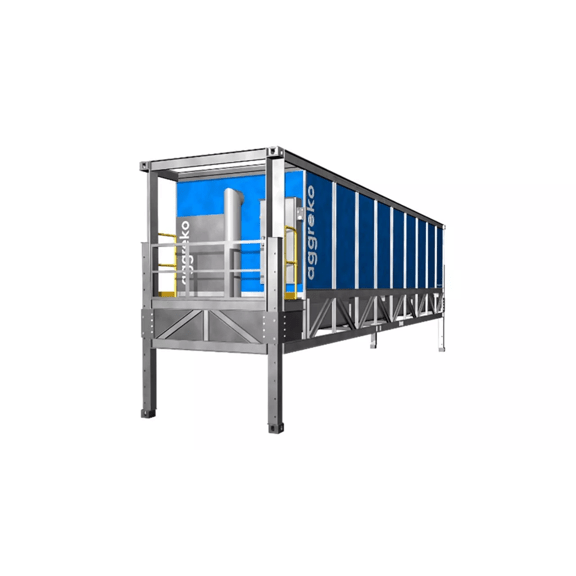

The GT series cooling towers represent the latest in cooling tower technology. These cooling towers were developed by Aggreko specifically for the US market. The GT-40 is a 800 Ton cooling tower integrated into a shipping container frame. This provides for maximum transportation efficiency globally or domestically. This cooling tower is modular or can be used indepenantly on or off a trailer and has an adjustable substructure from 0 to 12 feet. The EC fan motors provide maximum energy efficiency and precise temperature control.
Nominal Capacity | 800 tons |
---|---|
Nominal Water Flow | 2400 GPM |
Air Delivery Type | Induced Draft |
Fan Motor Size | 18 x 2.9 HP |
Full Load Amps | 57 Amps |
Volts/Phase/Hz | 480/3/60 |
Fan Speed Control | Variable Speed |
Inlet Connection Size (hot) | 1 x 12" Flange |
Outlet Connection Size (cold) | 2 x 12" Flange |
Make-up water connection | 2" FNPT |
Height (ft) | 9'-6" |
---|---|
Width (ft) | 8'-0" |
Length (ft) | 40'-0" |
Substructure Height | 10" to 144" |
Shipping Weight | 30000 lbs |
Operating Weight | 41000 lbs |
Features
- Modular Design
- Integrated Shipping Container Design
- Variable Speed Fans
- Telescoping Substructure
- Touchscreen Controls

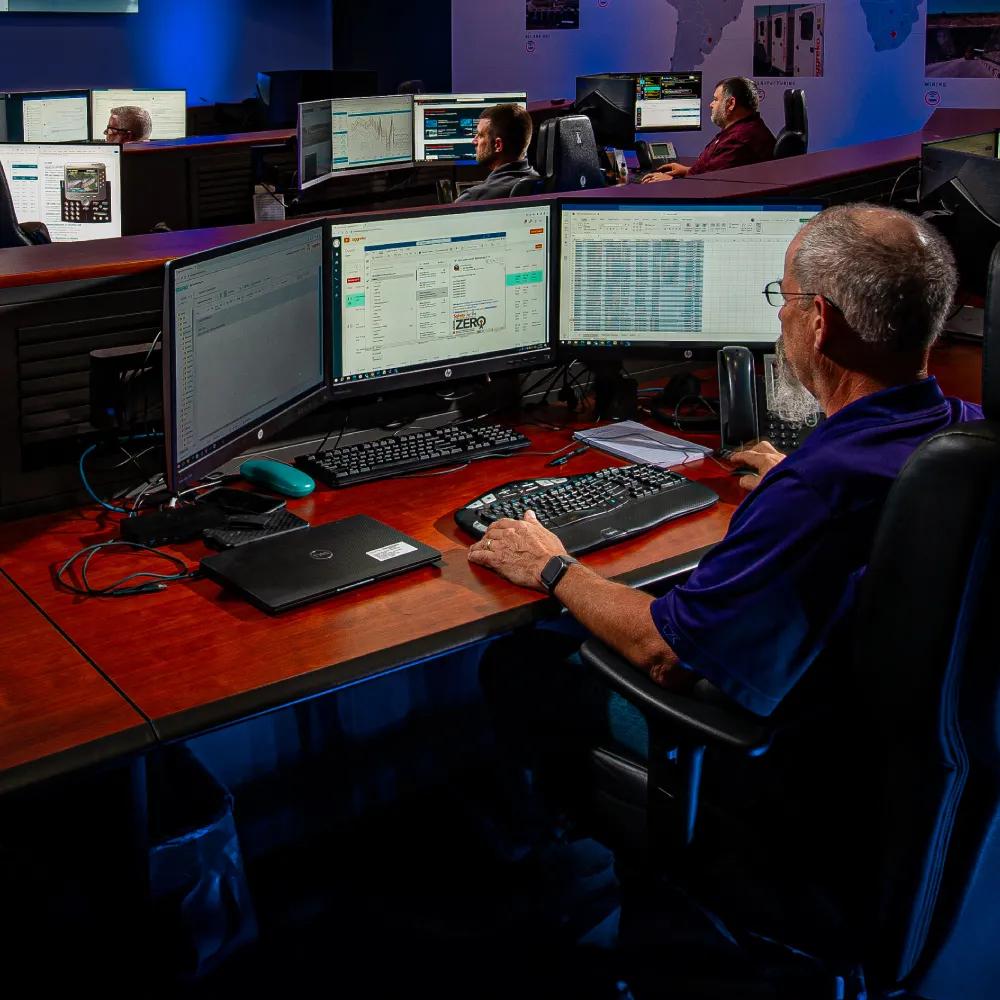

- Remote Monitoring
- Suitable for Hazardous Locations
Benefits
- Can be interconnected to achieve any cooling capacity requiring 25% less space
- 40% reduction in domestic freight costs / 90% reduction in ocean transport costs
- Reduces energy costs by 50% and maintains precise temperature control
- Tower height adjustable to allow maximum drain capability and space for accessories
- See real time water temperatures, water flow, fan speeds, power consumption, etc...
- Peace of mind knowing that Aggreko is monitoring equipment status 24/7/365
- With an optional air purge the GT-40 is suitible for use in Class 1, Division 2 locations
