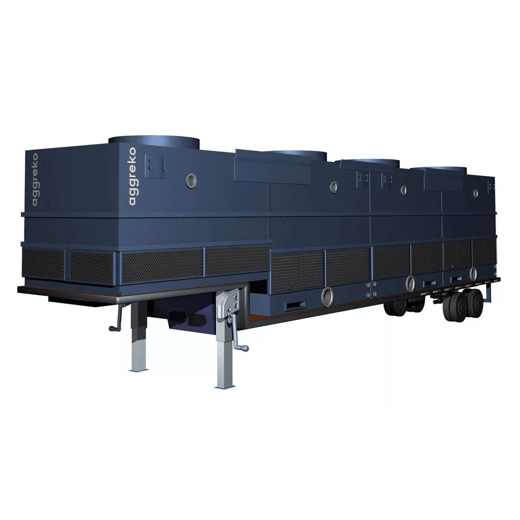

1000 ton trailer mounted cooling tower

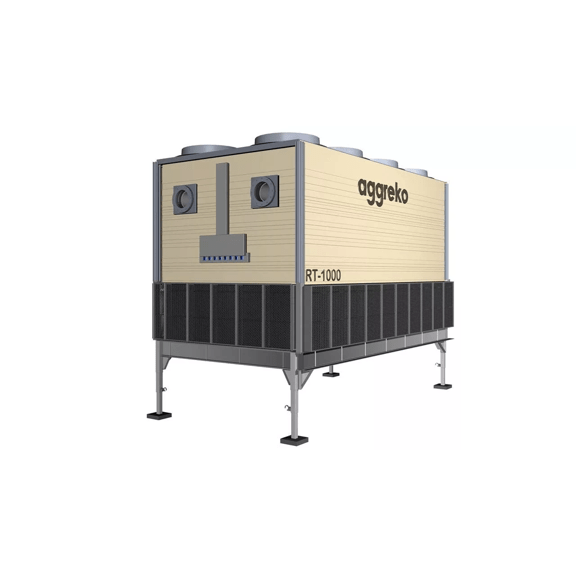

The RT-1000 800-ton cooling tower is an induced draft counterflow cooling tower with a nominal capacity of 800 tons. The air inlet louver section compresses in height for transport on standard single-drop trailers and can be easily assembled on-site. Heavy-duty, adjustable jacks on each corner facilitate leveling with minimal cribbing support. The RT-1000 temporary cooling tower rental includes a fouling-resistant fill media and low-clog water spray nozzles, making it suitable for most industrial applications.
1000 ton trailer mounted cooling tower
The RT-1000 800-ton cooling tower is an induced draft counterflow cooling tower with a nominal capacity of 800 tons. The air inlet louver section compresses in height for transport on standard single-drop trailers and can be easily assembled on-site. Heavy-duty, adjustable jacks on each corner facilitate leveling with minimal cribbing support. The RT-1000 temporary cooling tower rental includes a fouling-resistant fill media and low-clog water spray nozzles, making it suitable for most industrial applications.
Available voltage: 480V three phase @ 60 Hz Full Load Amps: 100 amps Inlet Connection Size (Hot): 4 x 12" Flange Outlet Connection Size (Cold): 2 x 12" Flange Scalable Solutions: Interconnect multiple units effortlessly, ensuring flexibility for your cooling needs Energy-Efficient EC Fan Motors: Experience maximum energy efficiency and precise temperature control with state-of-the-art EC fan motors Industrial & Commercial: Perfect for temporary cooling requirements, tower replacement, repair, emergency cooling, or wastewater cooling
Features
- Elevated cold water basin
- Compressible air inlet section
- Adjustable leveling substructure
- Multiple hot water connection flanges
Benefits
- The elevated cold water basin makes draining the cold water long distances without the need for additional pumps
- Compressible air inlet section reduces shipping height by 3 ft for easy transport
- The adjustable substructure design makes installation safer and more efficient
- Multiple options for inlet water connections minimizes external piping requirements
Air delivery type
Induced draft
Fan motor size
8 x 7.5 HP
Fan speed control
Optional
Full load amps
100 Amps
Inlet connection size hot
4 x 12" Flange
Make-up water connection
2" FNPT
Nominal capacity
800 tons
Nominal water flow
2400 GPM
Outlet connection size (cold)
2 x 12" Flange
Volts/Phase/Hz
480/3/60
Height
10'-3"
Length (ft)
21'-6"
Operating weight
26,460 lbs
Shipping weight
14,970 lbs
Substructure height
3'-6"
Width
11'-11.5"
