Load banks for rent 24/7/365

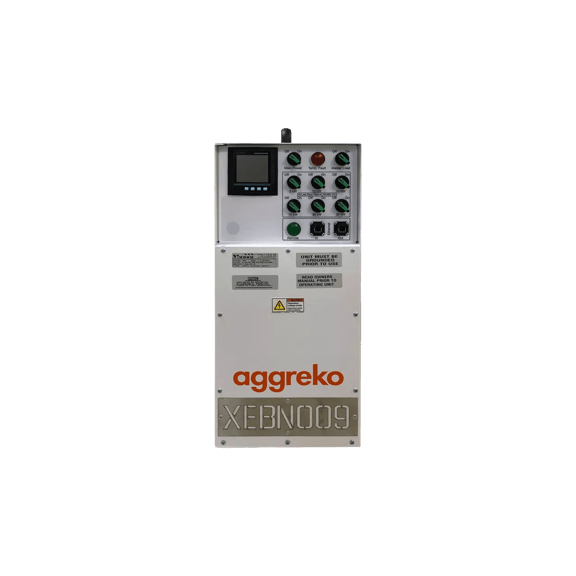

100 kW Resistive Load Bank

100 kW Resistive Load Bank - Waterproof foam lined hard case with casters and handles, ATA rated, Military Grade. The reliability and practicality of load bank rentals for power system testing can prevent the risk of costly power failures and maximize efficient production during routine maintenance.

Equipment shown may not be representative of equipment currently available

Rating 100 kW
Voltage (V) 240-480
Length (ft) 1.7
Width (ft) 1,7
Height (ft) 2.19
Gross Weight (lbs) 65
Net Weight (lbs) 65
Information to be used as a guide, full specification data please contact us


  • 100 kW Resistive Load Bank
  • Load bank rentals ranging in sizes from 100 kW to 6MVA.
  • Up to five units can be linked and operated from one control panel.
  • Cam Lock Load Connections: brown, orange, yellow, green.
  • Safety features include branch circuit fusing, ground cam-lock, voltage protection circuit and 22mm LED indicator, and temperature protection circuit and 22mm LED indicator.
  • Air inlet and outlet protected by expanded metal screens and heat is discharged horizontally.
  • Optional Upgrade - Remote Control Kit


  • Testing lower power factor simulation, frequency converters or full electrical system integration.
  • Commissioning newly installed turbine or diesel generators.
  • Performing maintenance testing on equipment.
  • Constructing a gas turbine platform, and many other applications.
